Description

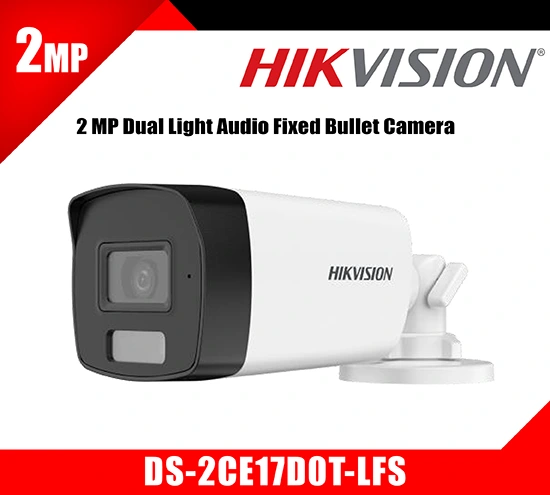

Quick Start Guide: DS-2CE17D0T-LFS
Specification
Camera
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm, 3.6 mm and 6 mm fixed focal lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°
- 3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
- 6 mm, horizontal FOV: 49.2°, vertical FOV:28.3 °, diagonal FOV: 56.1°
- Lens Mount: M12
Illuminator
- Supplement Light Type: White Light;IR
- Supplement Light Range
- IR : Up to 40 m
- White Light : Up to 40 m
- Image Settings: Brightness, Sharpness, Smart IR
- Frame Rate
- TVI: 1080P @ 30 fps, 1080P @ 25 fps
- AHD: 1080P @ 30 fps, 1080P @ 25 fps
- CVI: 1080P @ 30 fps, 1080P @ 25 fps
- CVBS: PAL/NTSC
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: DWDR/BLC/HLC/Global
- White Balance: Auto/Manual
- AGC: Yes
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
- Built-In Microphone: Yes
General
- Material
- Front cover: Metal
- Main body: Plastic
- Dimension: 216.6 mm × 78.9 mm × 75.4 mm (8.53″ × 3.10″ × 2.97″)
- Weight: Approx. 339 g (0.75 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: HIKVISION-C
- Language: English
- Power Supply: 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
- Consumption: Max. 4.8 W
Approval
- Protection: IP67
