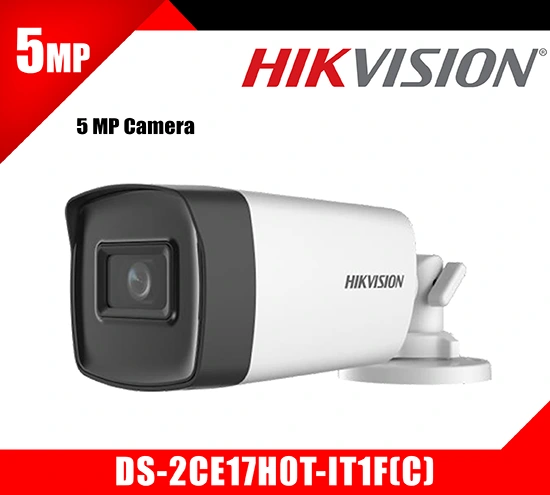

Datasheet : DS-2CE17H0T-IT1F(C)
User Manual : DS-2CE17H0T-IT1F(C)
Quick Start Guide : DS-2CE17H0T-IT1F(C)
Specification
Camera
- Image Sensor: 5 MP CMOS
- Max. Resolution: 2560 (H) × 1944 (V)
- Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV
- 2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°
- 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°
- 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
- 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°
- Lens Mount: M12
- Image Parameters Switch: STD/HIGH-SAT
- Image Settings: Brightness, Sharpness, Mirror, Smart IR
- Frame Rate
- TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
- AHD: 5M@20fps, 4M@30fps, 4M@25fps
- CVI: 4M@30fps, 4M@25fps
- CVBS: PAL/NTSC
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: DWDR/BLC/HLC/Global
- Noise Reduction: Yes
- White Balance: Auto/Manual
- AGC: Yes
Interface
- Video Output: TVI/AHD/CVI/CVBS
General
- Material
- Front Cover: Metal
- Main Body: Plastic
- Dimension: 78.9 mm × 75.4 mm × 216.6 mm (3.10″ × 2.97″ × 8.53″)
- Weight: Approx. 330 g (0.73 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: HIKVISION-C
- Language: English
- Power Supply: 12 VDC ± 25%
- Consumption: Max. 4.3 W
- IR Range: Up to 30 m
Approval
- Protection: IP67
