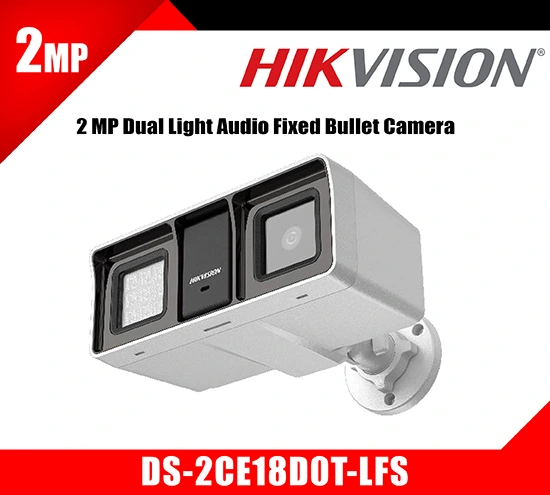

Quick Start Guide: DS-2CE18D0T-LFS
Specification
Camera
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with white light
- Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: Fixed focal lens, 2.8 mm, 3.6 mm and 6 mm optional
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°
- 3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
- 6 mm, horizontal FOV: 49.2°, vertical FOV:28.3 °, diagonal FOV: 56.1°
- Lens Mount: M12
Illuminator
- Supplement Light Type: White Light;IR
- Supplement Light Range
- IR : Up to 60 m
- White Light : Up to 60 m
- Image Settings: Anti-Banding, Brightness, Sharpness, Smart IR
- Frame Rate
- TVI: 1080P @ 30 fps, 1080P @ 25 fps
- AHD: 1080P @ 30 fps, 1080P @ 25 fps
- CVI: 1080P @ 30 fps, 1080P @ 25 fps
- CVBS: PAL/NTSC
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: DWDR/BLC/HLC/Global
- White Balance: Auto/Manual
- AGC: Yes
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Power: 12 VDC ± 25%, max.9.8 W,*You are recommended to use one power adapter to supply the power for one camera.
- Material
- Front cover: Metal
- Main body: Plastic
- Dimension: 192.6 mm × 178.3 mm × 71 mm (7.58″ × 7.02″ × 2.8″)
- Weight: Approx. 738 g (1.63 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: HIKVISION-C
- Language: English
Approval
- Protection: IP67
