Description

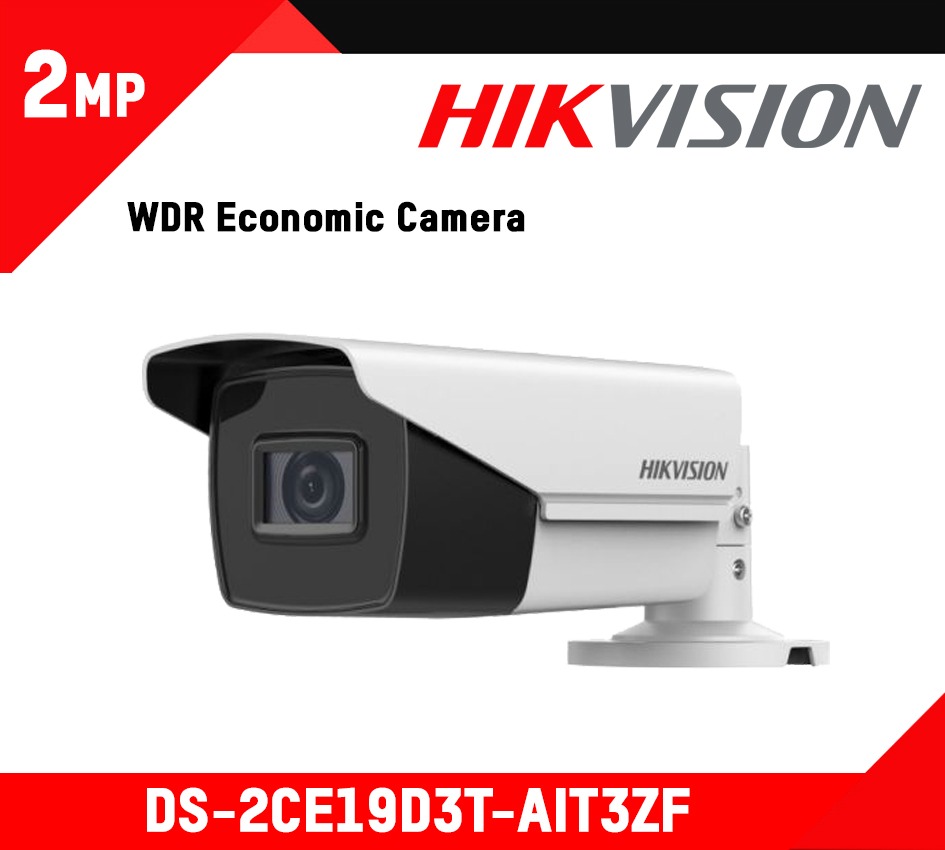

Data sheet : DS-2CE19D3T-AIT3ZF
User Manual : DS-2CE19D3T-AIT3ZF
Camera
- Image Sensor: 2.0 megapixel progressive scan CMOS
- Max. Resolution: 1920 (H) ×1080 (V)
- Min. Illumination: 0.005 Lux@(F1.6, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.7 mm to 13.5 mm
- Focal Length & FOV: 102° to 31°
- Lens Mount: Φ 14
- Image Parameters Switch: STD/HIGH-SAT
- Image Settings: Brightness, Sharpness, 3D DNR, Mirror, Smart IR
- Frame Rate
- PAL: 1080p@25fps
- NTSC: 1080p@30fps
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): ≥ 120 dB
- Image Enhancement: Yes
- White Balance: ATW/MWB
- AGC: High/Medium/Low
Interface
- Video Output: 1 HD analog output ;TVI/AHD/CVI/CVBS
General
- Material
- Front cover: Metal
- Main body: Plastic
- Bracket: Metal
- Dimension: 84.5 mm × 92 mm × 255.1 mm (3.33″ × 3.62″ × 10″)
- Weight: Approx. 695 g (1.53 lb.)
- Operating Condition: ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Language: English
- Power Supply: 24 VAC ±15%, 12 VDC ±20%
*You are recommended to use one power adapter to supply the power for one camera.
- Consumption: Max. 9.7 W
- IR Range: Up to 70 m
Approval
- Protection: IP67
