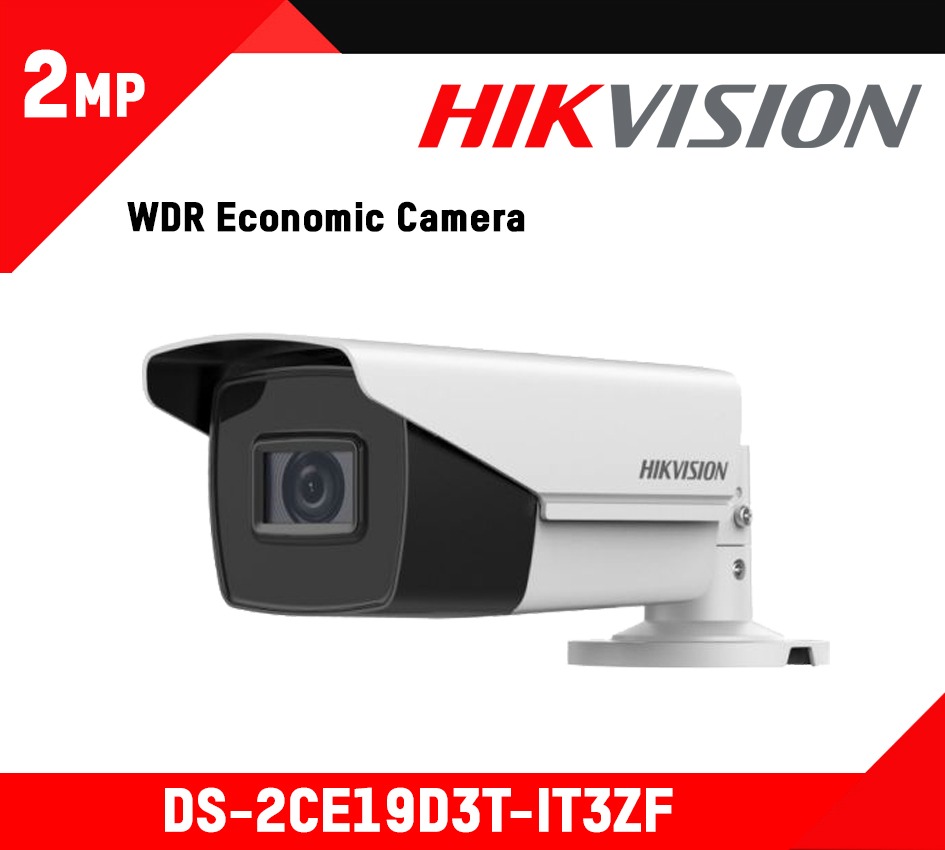

DS-2CE19D3T-IT3ZF

Description

Quick Start Guide: DS-2CE19D3T-IT3ZF
User Manual: DS-2CE19D3T-IT3ZF

Camera

• Image Sensor: 2.0 megapixel progressive scan CMOS
• Max. Resolution: 1920 (H) ×1080 (V)
• Min. Illumination: 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time
  • PAL: 1/25 s to 1/50, 000 s
  • NTSC: 1/30 s to 1/50, 000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
• Signal System: PAL/NTSC

Lens

• Lens Type: 2.7 mm to 13.5 mm
• Focal Length & FOV: 102° to 31°
• Lens Mount: Φ 14


• Image Parameters Switch: STD/HIGH-SAT
• Image Settings: Brightness, Sharpness, 3D DNR, Mirror, Smart IR
• Frame Rate
  • PAL: 1080p@25fps
  • NTSC: 1080p@30fps
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): ≥ 120 dB
• Image Enhancement: Yes
• Privacy Mask: ON/OFF, 4 programmable privacy masks
• Noise Reduction: Level 1 to 10
• White Balance: ATW/MWB
• AGC: High/Medium/Low

Interface

• Video Output: TVI/AHD/CVI/CVBS

Event

• Motion Detection: 4 programmable motion areas

General

• Material
  • Front cover: Metal
  • Main body: Plastic
  • Bracket: Metal
• Dimension: 84.5 mm × 92 mm × 255.1 mm (3.33″ × 3.62″ × 10″)
• Weight
  • Approx. 648 g (1.43 lb.)
• Operating Condition: ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
• Language: English
• Power Supply
  • 12 VDC ±25%

    *You are recommended to use one power adapter to supply the power for one camera.

• Consumption: Max. 7.7 W
• IR Range: Up to 70 m

Approval

• Protection: IP67
