Description

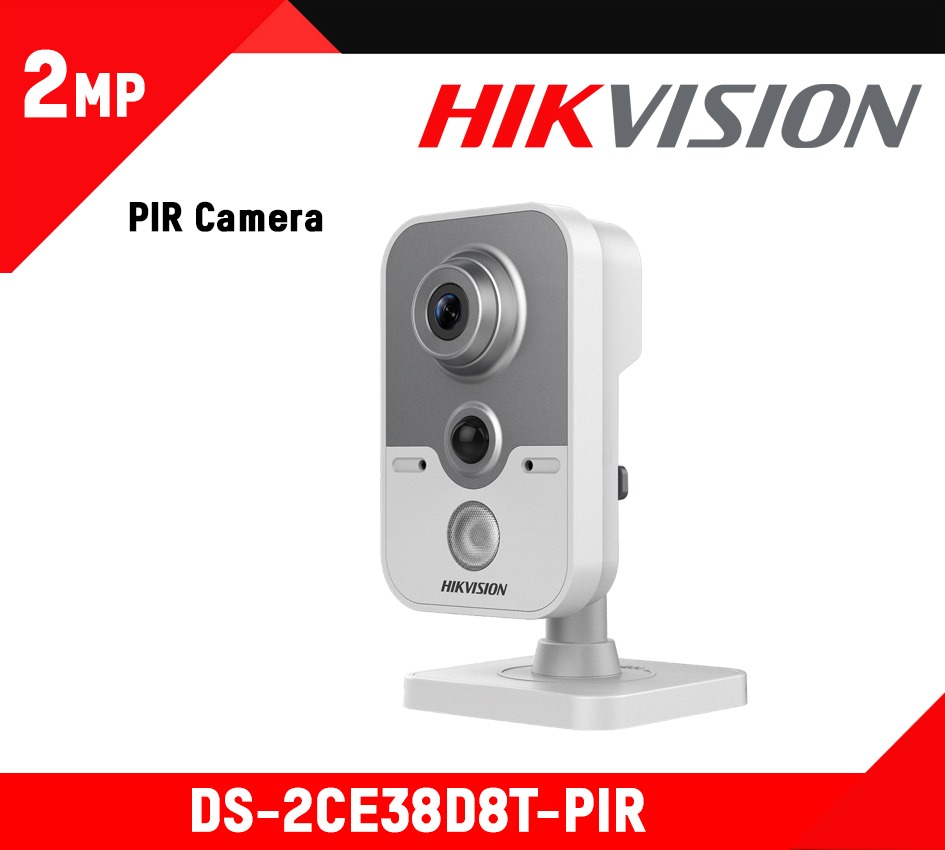

| Model | DS-2CE38D8T-PIR |
|---|---|
| Slow Shutter: | Max. 16 times |
| WDR (Wide Dynamic Range): | > 120 dB |
| Image Sensor: | 2.0 megapixel progressive scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time: | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Lens: | 2.8 mm, 3.6 mm fixed focal lens |
| Lens Mount: | M12 |
| Day& Night: | IR cut filter |
| Horizontal Resolution: | 1920 (H) × 1080 (V) |
| Synchronization: | Internal Synchronization |
| Horizontal Field of View: | 103.5°(2.8 mm), 80.3°(3.6 mm) |
| Backlight Compensation: | WDR/BLC/OFF |
| 3D DNR (Digital Noise Reduction): | Level 1 to 10 |
| D/N Mode: | Auto/Color/BW (Black and White) |
| Auto White Balance: | ATW/MANUAL |
| Private Mask: | ON/OFF, 4 programmable privacy masks |
| Motion Detection: | 4 programmable motion areas |
| AGC: | Yes |
| Language: | English/Chinese |
| Function: | Brightness, Sharpness, Mirror, Smart IR |
| Audio In: | Built-in microphone |
| Audio Out: | 1 RCA |
| Video Out: | 1 HD analog output |
| Material: | Plastic |
| PIR Range: | Angle: 110°, Range:11 m |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC±25% |
| Power Consumption: | Max. 5 W |
| IR Range: | Up to 20m |
| Communication : | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimension: | 104 mm × 66 mm × 41.07 mm (4.1″ × 2.6″ × 1.62″) |
| Weight: | Approx. 210 g (0.46 lb.) |
