Description
Datasheet: DS-2CE56C0T-IRMMF
User Manual: DS-2CE56C0T-IRMMF

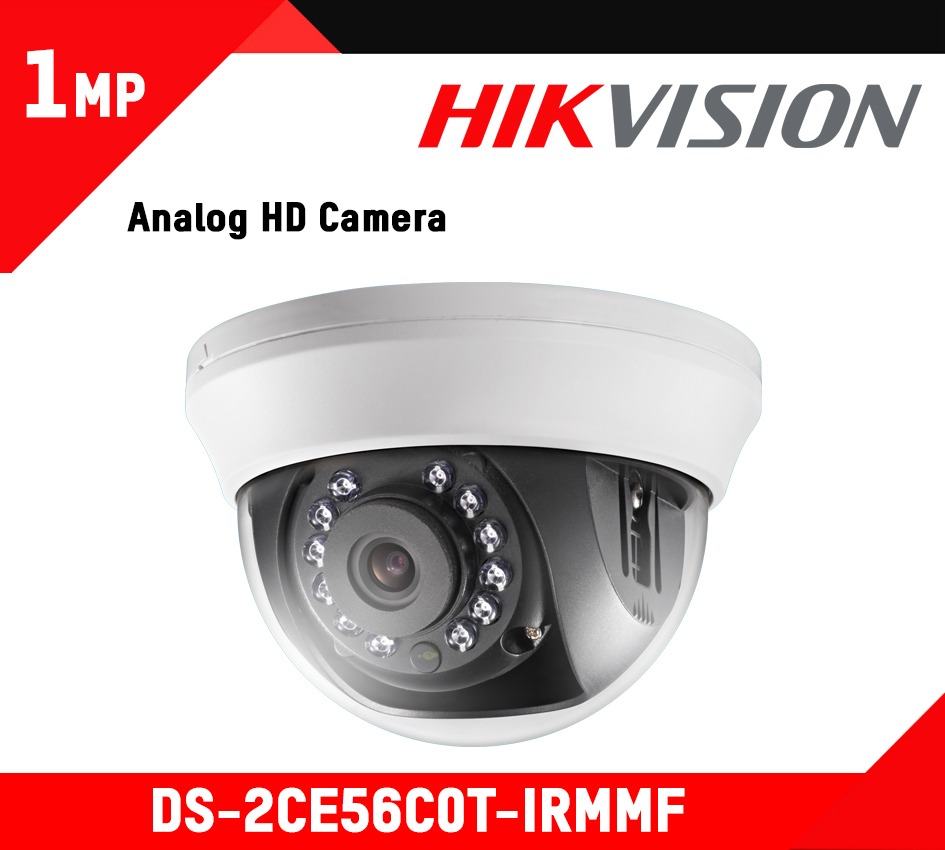

Camera
- Image Sensor: 1 MP CMOS image sensor
- Max. Resolution: 1296 (H) × 732 (V)
- Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time: 1/25 (1/30) s to 1/50,000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0° to 350°, Tilt: 0° to 70°, Rotation: 0° to 350°
- Signal System: PAL/NTSC
Lens
- Lens Type: Field of view: 70.9°(3.6 mm), 92°(2.8 mm), 56.7°(6 mm)
- Lens Mount: M12
Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 20 m
- Frame Rate: 720p@25fps/720p@30fps
- SNR: >62 dB
Interface
- Video Output: 1 analog HD output
General
- Dimension: Φ 98 mm × 65.4 mm (3.86″ × 2.57″)
- Weight: 240 g (0.53 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
- Power Supply: 12 V DC±15%
- Consumption: Max. 4 W
- IR Range: Up to 20 m
