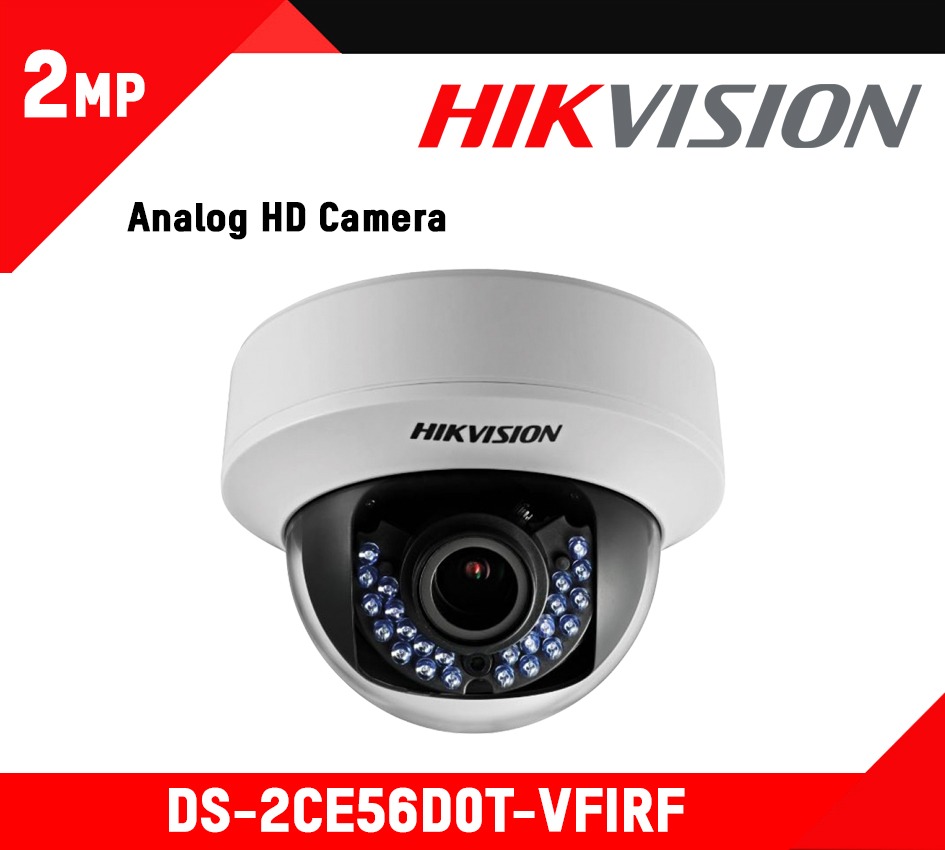

| Model | DS-2CE56D0T-VFIRF | |
|---|---|---|
| Camera | ||
| Image Sensor: | 2.0 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1920 (H) × 1080 (V) | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.8 – 12 mm @ F1.4 | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | PAL: 1080p@25fps NTSC: 1080p@30fps |
|
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| General | ||
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Power Consumption: | Max. 4 W | |
| IR Range: | Up to 30m | |
| Dimension: | Φ136 × 101 mm (Φ 5.35” × 3. 98”) | |
| Weight: | 600 g | |
