Description

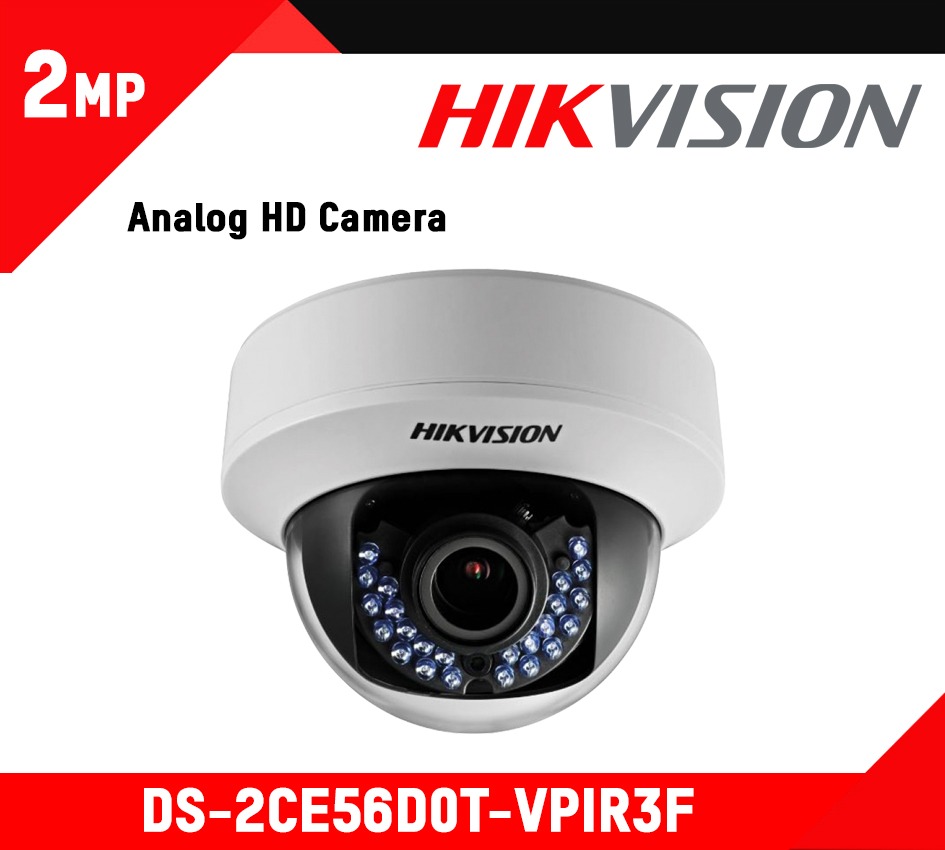

Datasheet : DS-2CE56D0T-VPIR3F
User Manual : DS-2CE56D0T-VPIR3F
Camera
- Image Sensor: 2MP CMOS image sensor
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR
- Shutter Time: 1/25 (1/30) s to 1/50,000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 – 12 mm @ F1.4
- Focal Length & FOV: 102.25° – 32 °
- Lens Mount: Φ14
- Frame Rate: 1080p@25fps/1080p@30fps
- Wide Dynamic Range (WDR): >62 dB
Interface
- Video Output: 1 HD analog output
General
- Dimension: Φ145.3 × 124.2 mm (Φ 5.72” × 4.89”)
- Weight: Approx. 1300 g
- Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- Power Supply: 12 VDC±15%
- Consumption: Max. 4 W
- IR Range: Up to 40 m
Approval
- Protection: IP66
