Description

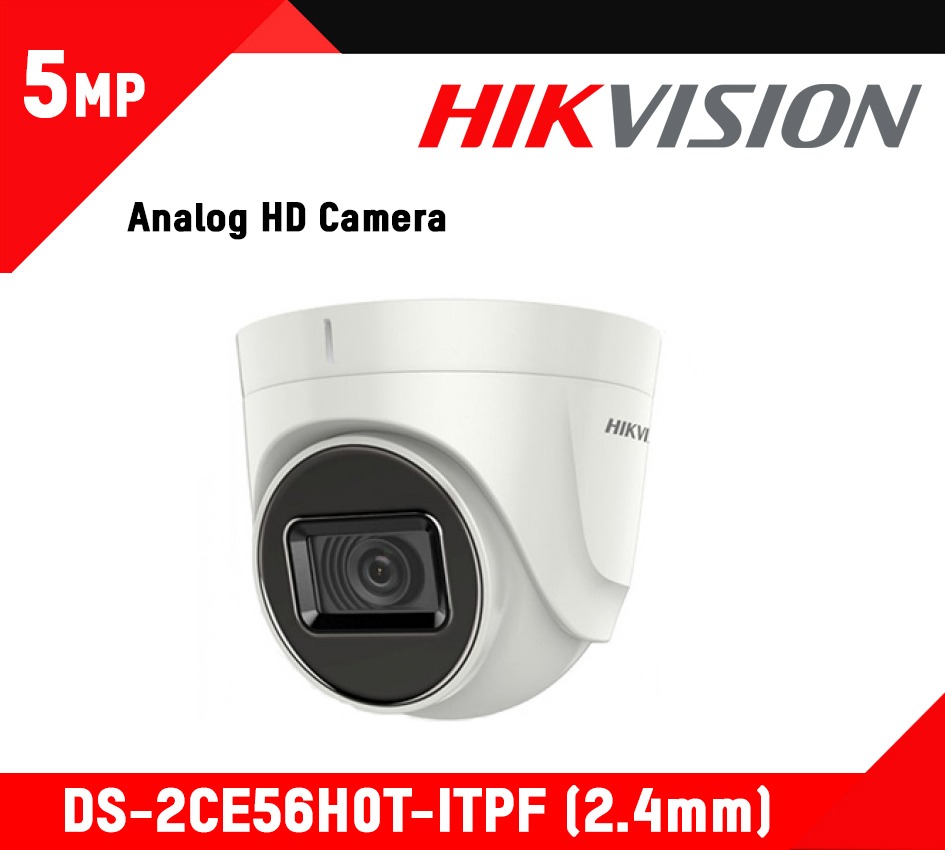

Datasheet: DS-2CE56H0T-ITPF (2.4mm)
Model | DS-2CE56H0T-ITPF (2.4mm) |
---|---|
Device Type | surveillance camera |
Connection type | wired |
Matrix resolution | 5 Mpx (2560×1920) |
Video standard | HDCVI/HDTVI/AHD/CVBS (Analogue) |
Installation location | inside |
Type of instalation | wall/ceiling/overhead |
Form factor | dome |
Intended for use | home/house/office/store/warehouse/production/garage |
Wi-Fi support | no |
Matrix type | CMOS image sensor |
Recording speed | 5 MP – (1-20 fps)/4 MP – (1-25 fps) |
Camera motion sensor | no |
Lens type | fixed |
Focal length | 2.4 mm |
Viewing angle | 85.5° |
Optical zoom | 1x |
Digital zoom | 1x |
Light sensitivity | 0.01 Lx / F1.2 (Color)/0 Lx with IR |
Light distance | 20 m |
Day-night mode | yes/ICR filter |
Built-in microphone | no |
Built-in speaker | no |
Special features | smart IR-illumination (Exir 2.0) |
Video output | 1xBNC |
Audio inputs | no |
Audio outputs | no |
Network output | no |
Network Interface | no |
Memory card slot | no |
Type of memory cards | no |
PoE support | no |
PoE type | no |
Alarm Inputs-Outputs | no |
Alarm inputs | no |
Alarm outputs | no |
Modes | ICR/Color/B/W / AGC / AWB / 2D DNR / BLC / DWDR |
Streaming | 1 stream |
PTZ control | no |
Built-in lightning protection | no |
Additional functions of camera | smart IR |
Moisture and dust protection | no |
Vandal protection | no |
Browsers | Chrome/Firefox/Safari/Edge/Opera |
OS support | Windows/MAC OS/IOS/Android |
Powered by batteries / rechargeable batteries | no |
Integration with Ajax system | no |
Compatibility | with Hikvision DVRs |
Consumption | 4.3 W |
Operating voltage | 12V DC |
Body color | white |
Body material | plastic |
Weight | 130 g |
Temperature range | -40…+60°C |
