Description

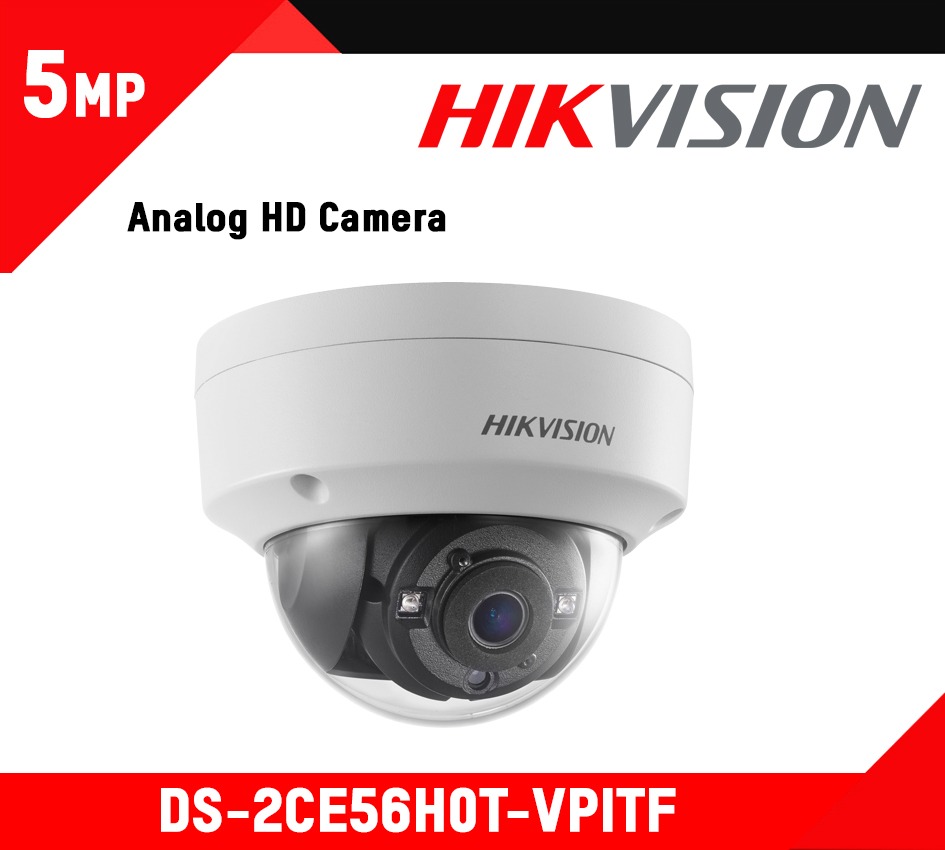

Product Description : DS-2CE56H0T-VPITF
Camera
- Image Sensor : 5 MP progressive scan CMOS
- Resolution : 2560 (H) × 1944 (V)
- Minimum Illumination Color : 0.01 Lux @ (ƒ 1.2, AGC on), 0 Lux with IR
- Shutter Speed : 1/30 s to 1/50, 000 s
- Lens : 2.8 mm, 3.6 mm, and 6 mm fixed lens options
- Horizontal Field of View : 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)
- Lens Mount : M12
- Day / Night : IR cut filter
- Angle Adjustment : Pan: 0° to 355°; tilt: 0° to 75°; rotate: 0° to 355°
- Synchronization Internal : Synchronization
- Frame Rate : 5 MP @ 20 fps, 4 MP @ 30 fps, 1080p @ 30 fps
Menu
- AGC : Supported
- Day/Night Mode : Auto/color/BW (black and white)
- White Balance : ATW/MWB
- BLC : Supported
- DWDR : Supported
- Language : English
- Functions : Brightness, sharpness, DNR, mirror, smart IR
Interface
- TVI Video Output : 1 HD analog output
- Switch Button : TVI/AHD/CVI/CVBS
General
- Operating Conditions : -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation)
- Power Supply : 12 VDC ± 25%
- Power Consumption : Maximum 4.3 W
- Protection Level : IP67, IK10
- Material : Metal
- Color : Hikvision White / Hikvision Black
- IR Range : Up to 65 ft (20 m)
- Communication : Up-the-Coax, Protocol: HIKVISION-C (HD-TVI output)
- Dimensions : Ø 4.4″ x 3.2″ (Ø 111 mm x 82.4 mm)
- Weight : Approximately 0.77 lbs (350 g)
