Description

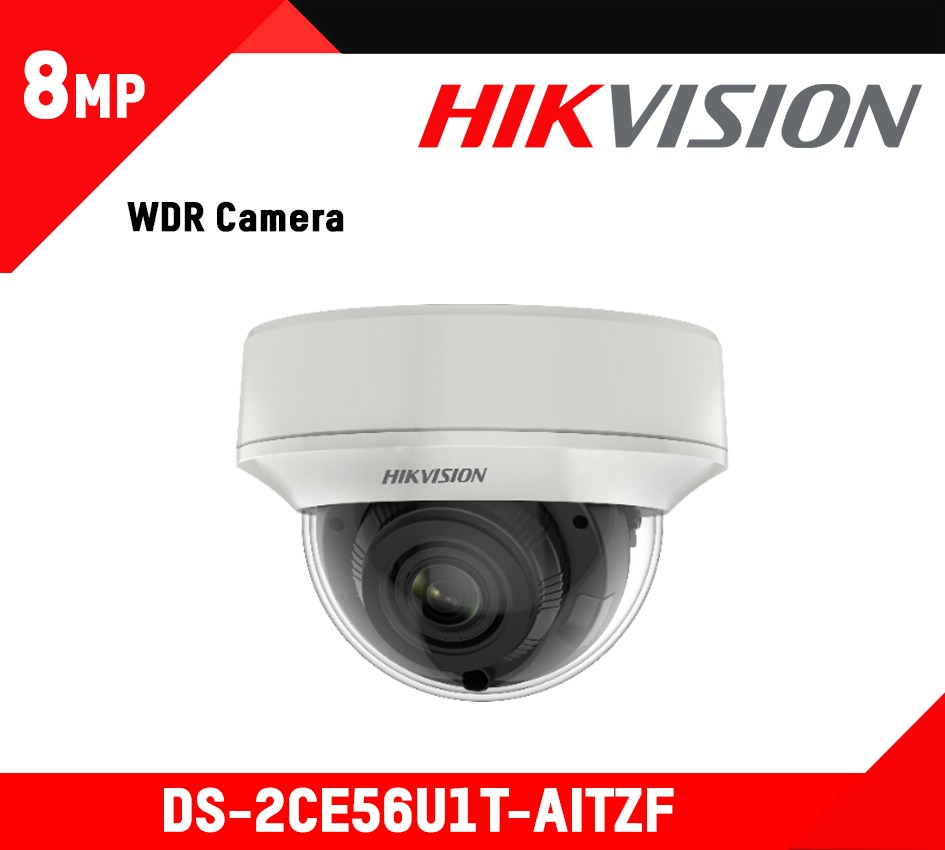

Datasheet: DS-2CE56U1T-AITZF
User Manual: DS-2CE56U1T-AITZF
Camera
- Image Sensor: 8.29 megapixel progressive scan CMOS
- Max. Resolution: 3840 (H) × 2160 (V)
- Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/12.5 s to 1/50, 000 s,NTSC: 1/15 s to 1/50, 000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 340°; Tilt: 0° to 75°; Rotate: 0° to 355°
Lens
- Lens Type: 2.7 mm to 13.5 mm motorized vari-focal lens
- Focal Length & FOV: 108.1° to 45.6°
- Lens Mount: Φ14
- Image Settings: Brightness, Sharpness, DNR, Mirror, Smart IR, HLC
- Frame Rate
- TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,,2MP@30fps
- CVI: 8MP@12.5fps, 8MP@15fps,AHD: 8M@12.5fps, 8M@15fps
- CVBS: 960H P/N
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): DWDR
- Image Enhancement: BLC
- White Balance: Auto/Manual
- AGC: Yes
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material: Plastic
- Dimension: Ø 136 mm × 101.94 mm (Ø 5.35″ × 4.01″)
- Weight: Approx. 450 g (0.99 lb.)
- Operating Condition: -40 °C to 50 °C (-40 °F to 122 °F), humidity: 90% or less (non-condensation)
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Power Supply: 9 VDC to 15 VDC,-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC,*You are recommended to use one power adapter to supply the power for one camera.
- Consumption: Max. 6.4 W,-A: Max. 8.2 W
- IR Range: Up to 60 m
