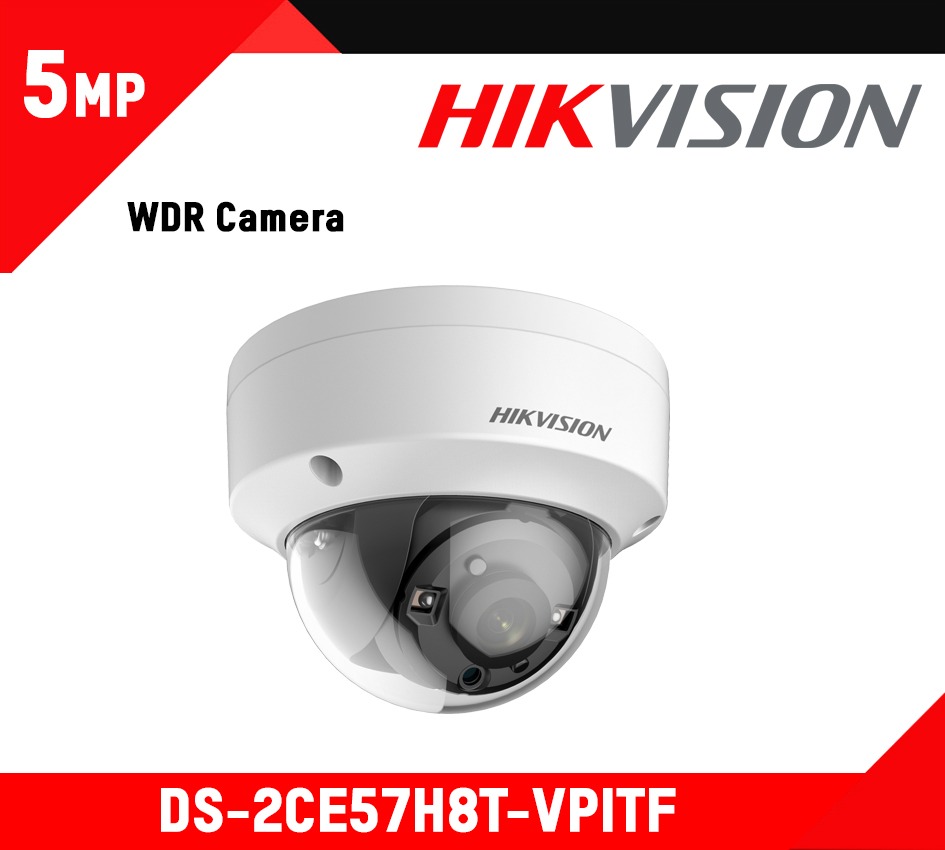

Datasheet of DS-2CE57H8T-VPITF
User Manual of DS-2CE57H8T-VPITF
| Camera | |
|---|---|
| Image Sensor: | 5 megapixel progressive scan CMOS |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 2560 (H) × 1944 (V) |
| Min. Illumination: | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens: | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° |
| Day& Night: | IR cut filter |
| Video Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC |
| Synchronization: | Internal Synchronization |
| Menu | |
| 3D DNR (Digital Noise Reduction): | Level 1 to 9 |
| D/N Mode: | Auto/Color/BW (Black and White) |
| White Balance: | Auto / Manual |
| BLC: | Support |
| AGC: | Support |
| WDR: | Yes |
| Language: | English |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Out: | 1 HD analog output |
| General | |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. |
| Impact Protection: | IK10. |
| Weather Proof: | IP67 |
| IR Range: | Up to 30m |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | Ø 111 mm × 82.4 mm (Ø 4.4″ × 3.2″ ) |
| Weight: | Approx.500 g (1.10 lb.) |
