Description

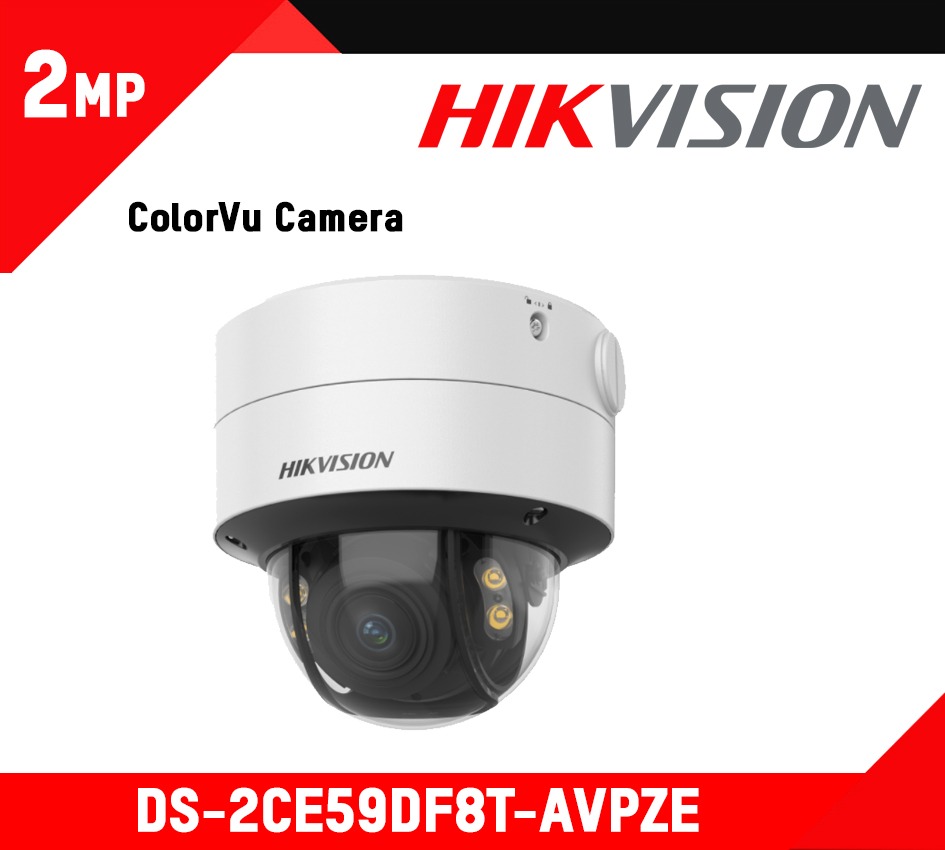

Datasheet : DS-2CE59DF8T-AVPZE
User Manual : DS-2CE59DF8T-AVPZE
Camera
- Image Sensor: 1/1.8″ 2 MP CMOS
- Signal System: PAL/NTSC
- Resolution: 1920 (H) × 1080 (V)
- Frame Rate: TVI: 1080p @ 25 fps/30 fps
- Min. Illumination: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white Light
- Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens: 2.8 mm to 12 mm motorized, auto focus
- Field Of View: horizontal FOV: 92.3° to 34.2°, vertical FOV: 48.4° to 19°, diagonal FOV: 112.2° to 39.2°
- Lens Mount: Φ24
- Day & Night: 24/7 Color Imaging
- WDR (Wide Dynamic Range): ≥130 dB
- Angle Adjustment: Pan:0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
- White Light: Auto/Off
- Image Mode: STD/HIGH-SAT/HIGHLIGHT
- AGC: Yes
- White Balance: Auto/Manual
- AE (Auto Exposure) Mode: WDR;BLC;HLC;Global;HLS
- Privacy Mask: 4 programmable privacy masks
- Motion Detection: 4 programmable motion areas
- Noise Reduction: 3D DNR/2D DNR
- Language: English
- Function: Sharpness;Mirror;Brightness;Anti-Banding;Smart Light
Interface
- Video Output: 1 HD analog output
General
- Operating Conditions: -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
- Power Supply: 12 VDC/24 VAC±20%/PoC.at
- Consumption: Max: 12.2 W
- Protection Level: IP68/IK10
- Material: Metal
- White Light Range: Up to 40 m
- Communication: HIKVISION-C
- Dimension: Ø155 mm × 152 mm (Ø6.10″ × 5.98″)
- Approx. 1525 g (3.36 lb.)
