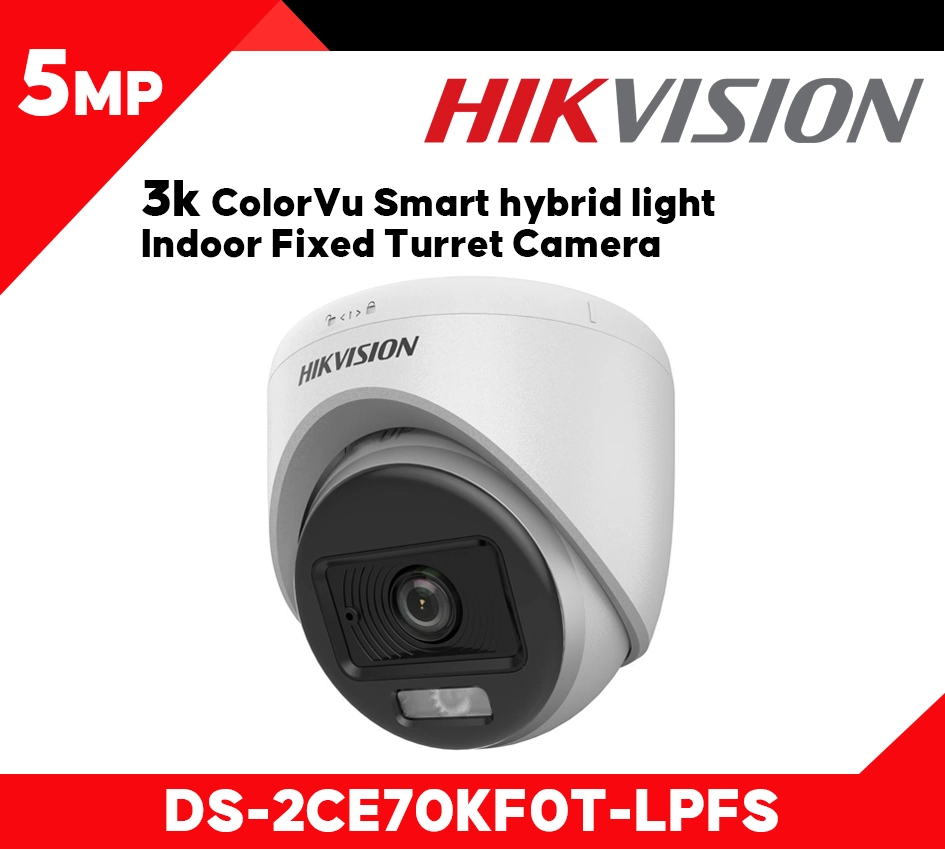

Datasheet: DS-2CE70KF0T-LPFS
User Manual: DS-2CE70KF0T-LPFS
Specification
Camera
- Image Sensor: 3K CMOS
- Signal System: PAL/NTSC
- Resolution: 2960 (H) × 1665 (V)
- Frame Rate
- TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
- AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps
- CVI: 4 MP @25 fps/30 fps
- CVBS: PAL/NTSC
- Min. Illumination: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
- Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens: 2.8 mm, 3.6 mm fixed focal lens
- Field of View
- 2.8 mm, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143°
- 3.6 mm, horizontal FOV: 94°, vertical FOV: 50°, diagonal FOV: 112°
- Lens Mount: M12
- Light Alarm: Solid Light Alarm (White Light)
- Day & Night: ICR
- WDR (Wide Dynamic Range): Digital WDR
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Illuminator
- Supplement Light Type: IR, White Light
- Supplement Light Range: IR: Up to 20 m,White Light: Up to 20 m
- Smart Supplement Light: Yes
- White Light: Auto/Off
- Image Mode: STD/HIGH-SAT/HIGHLIGHT
- AGC: Yes
- Day/Night Mode: Auto
- White Balance: Auto/Outdoor/Global/Manual
- AE (Auto Exposure) Mode: HLS;DWDR;BLC;HLC;Global
- Noise Reduction: 2D DNR
- Language: English
- Function: Smart IR;Brightness;Sharpness;AGC;Anti-Banding
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
- Audio In: Built-in mic
General
- Power: 12 VDC ± 25%, max.3.9 W,*You are recommended to use one power adapter to supply the power for one camera.
- Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
- Material: Plastic
- Communication: HIKVISION-C
- Dimension: Ø85.02 mm × 81.25 mm (Ø3.35″ × 3.2″)
- Weight: Approx. 240 g (0.53 lb.)
