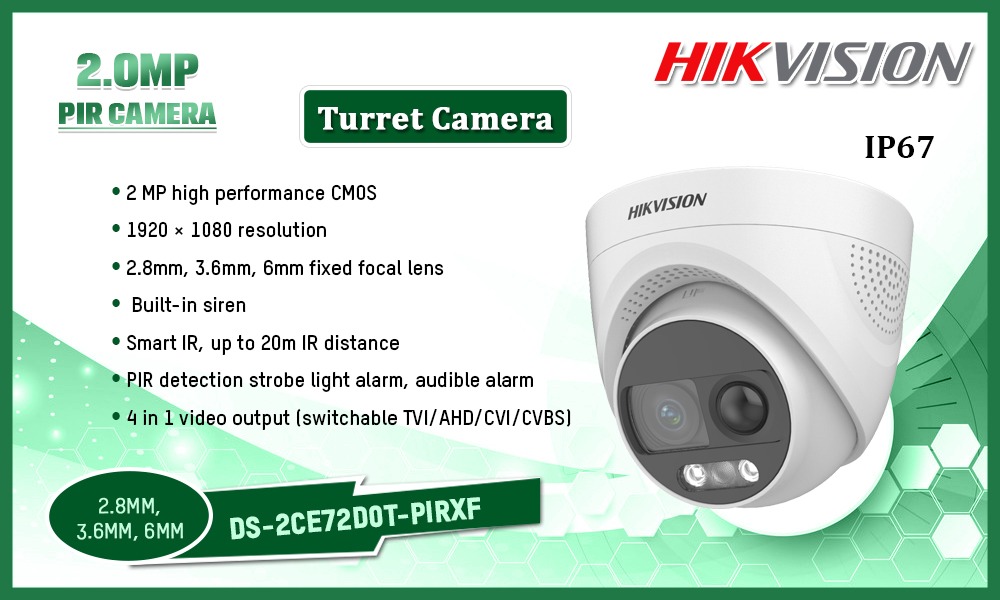

DS-2CE72D0T-PIRXF

Description

Datasheet: DS-2CE72D0T-PIRXF

User Manual: DS-2CE72D0T-PIRXF

Camera

• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time
  • PAL: 1/25 s to 1/50, 000 s
  • NTSC: 1/30 s to 1/50, 000 s
• Day & Night: ICR
• Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotate 0 to 360°
• Signal System: PAL/NTSC
• Light Alarm: Yes

Lens

• Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV
  • 2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 124°
  • 3.6 mm, horizontal FOV: 81°, vertical FOV: 43°, diagonal FOV: 96°
  • 6 mm, horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°
• Lens Mount: M12


• Parameters Switch: STD/HIGH-SAT
• Image Settings: Brightness, Sharpness, Mirror, Smart IR
• Frame Rate
  • TVI: 1080p@30fps, 1080p@25fps
  • AHD: 1080p@30fps, 1080p@25fps
  • CVI: 1080p@30fps, 1080p@25fps
  • CVBS: PAL/NTSC
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): Digital WDR
• Image Enhancement: BLC, HLC
• White Balance: ATW/MANUAL
• AGC: Support

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

General

• Material
  • Enclosure: Plastic
  • Main Body: Metal
• Dimension: Φ 109.82 mm × 93.66 mm (Φ 4.32″ × 3.7″)
• Weight: Approx. 388 g (0.86 lb.)
• Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
• Communication: HIKVISION-C
• Language: English
• Power Supply: 12 VDC ± 25%
  *You are recommended to use one power adapter to supply the power for one camera.
• Consumption: Max. 5.3 W
• IR Range: Up to 20 m

Approval

• Protection: IP67
