Description

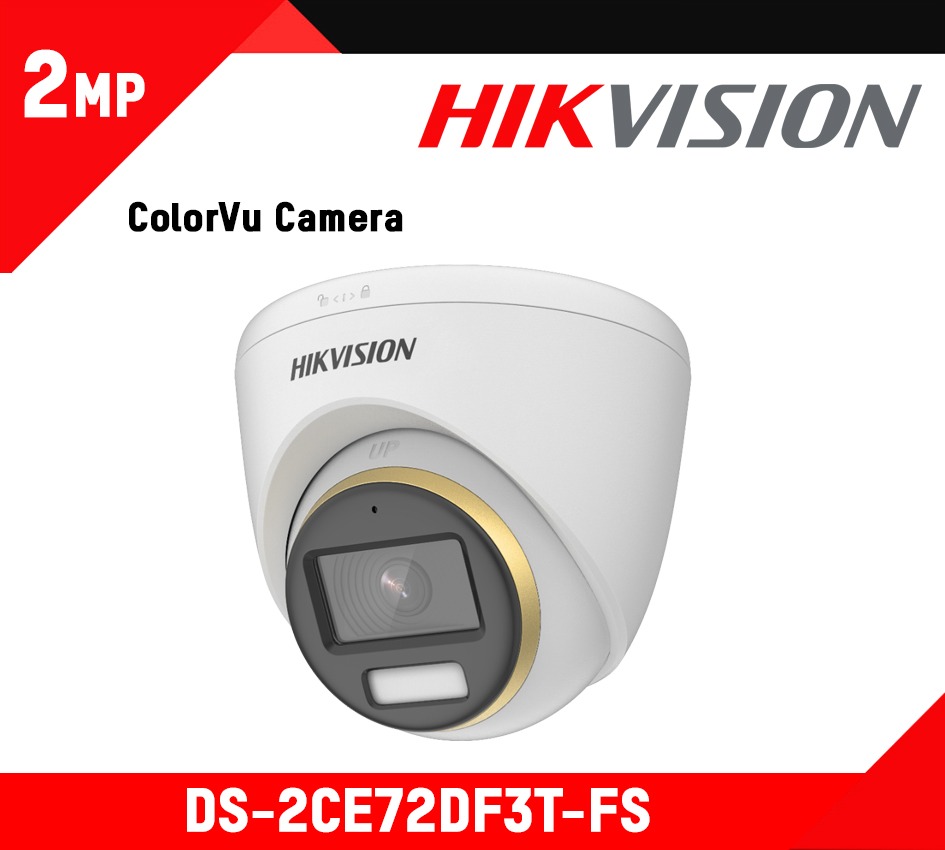

Quick Start Guide: DS-2CE72DF3T-FS
Camera
- Image Sensor: 2 MP CMOS
- Signal System: PAL/NTSC
- Resolution: 1920 (H) × 1080 (V)
- Frame Rate
- TVI: 1080p @ 25 fps/30 fps
- CVI: 1080p @ 25 fps/30 fps
- AHD: 1080p @ 25 fps/30 fps
- CVBS: PAL/NTSC
- Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Slow Shutter: Max. 16 times
- Lens: 2.8 mm, 3.6 mm fixed focal lens
- Field Of View
- 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°
- 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
- Lens Mount: M12
- Light Alarm: Solid Light Alarm (White Light)
- Day & Night: 24/7 Color Imaging
- WDR (Wide Dynamic Range): ≥130 dB
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- White Light: Auto/Off
- Image Mode: STD/HIGH-SAT/HIGHLIGHT
- AGC: Yes
- Day/Night Mode: Color
- White Balance: Auto/Manual
- AE (Auto Exposure) Mode: WDR;BLC;HLC;Global;HLS
- Privacy Mask: 4 programmable privacy masks
- Motion Detection: 4 programmable motion areas
- Noise Reduction: 3D DNR/2D DNR
- Language: English
- Function: Defective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
- Audio In: Built-in mic
General
- Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
- Power Supply: 12 VDC ± 25%,
*You are recommended to use one power adapter to supply the power for one camera.
- Consumption: Max. 4.4 W
- Protection Level: IP67
- Material: Main body: Metal, Enclosure: Plastic
- White Light Range: Up to 40 m
- Communication: HIKVISION-C
- Dimension: Φ 109.98 mm × 98.27 mm (Φ 4.33″ × 3.87″), Approx. 336 g (0.74 lb.)
