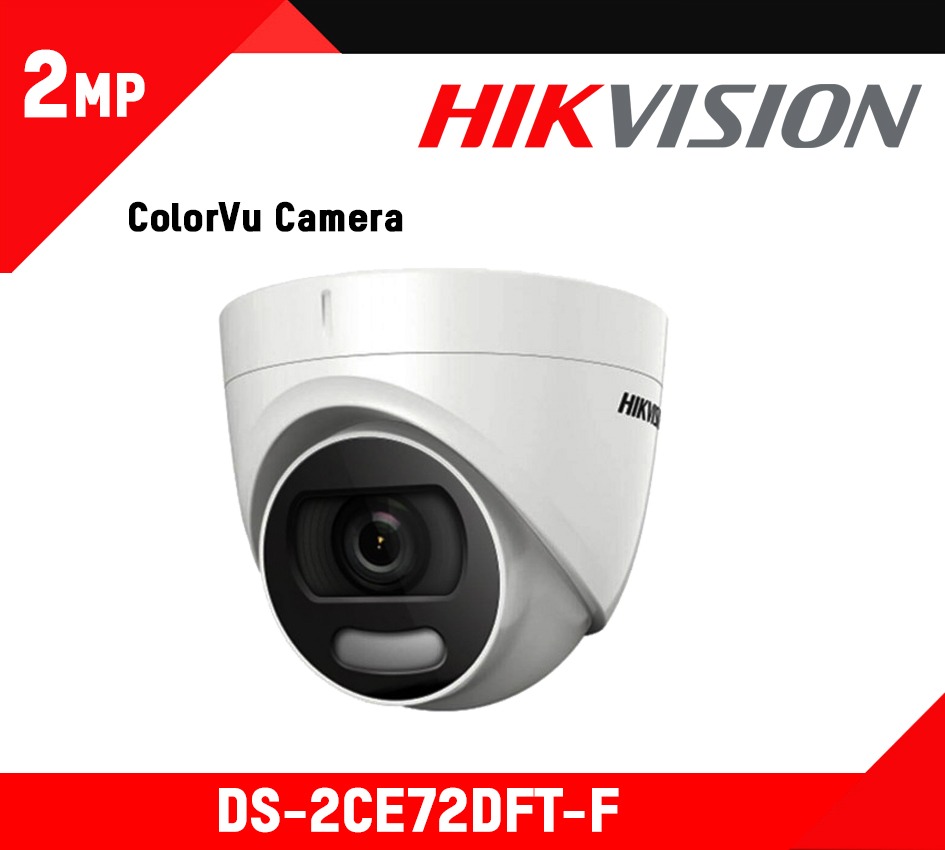

Datasheet – DS-2CE72DFT-F
User Manual – DS-2CE72DFT-F
Camera
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night: 24/7 Color Imaging
- Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
- Slow Shutter: Max. 16 times
Lens
- Lens Type: Fixed focal lens, 3.6 mm and 6 mm optional
- Focal Length & FOV
- 3.6 mm, horizontal FOV: 83.0°, vertical FOV: 44.4°, diagonal FOV: 98.0°
- 6 mm, horizontal FOV: 51.0°, vertical FOV: 28.5°, diagonal FOV: 58.7°
- Lens Mount: M16
Illuminator
- Supplement Light Type: White Light
- Supplement Light Range: Up to 20 m
- Smart Supplement Light: Yes
- Image Parameters Switch: STD/HIGH-SAT
- Image Settings: AGC;Brightness;Sharpness;Mirror;Smart Light
- Frame Rate
- PAL: 1080p@25fps
- NTSC: 1080p@30fps
- Wide Dynamic Range (WDR): ≥130 dB
- Image Enhancement: BLC;HLC;WDR
- Privacy Mask: 4 programmable privacy masks
- Noise Reduction: 3D DNR
- White Balance: Auto/Manual
Interface
- Video Output: 1 HD analog output;Switchable TVI/AHD/CVI/CVBS
Event
- Motion Detection: 4 programmable motion areas
General
- Power: 12 VDC ±25%, max. 3 W
*You are recommended to use one power adapter to supply the power for one camera.
- Material: Metal
- Dimension: Ø 109.82 mm × 85.56 mm ( Ø 4.32″ × 3.37″)
- Weight: Approx. 336 g (0.74 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: HIKVISION-C
Approval
- Protection: IP67
