Description

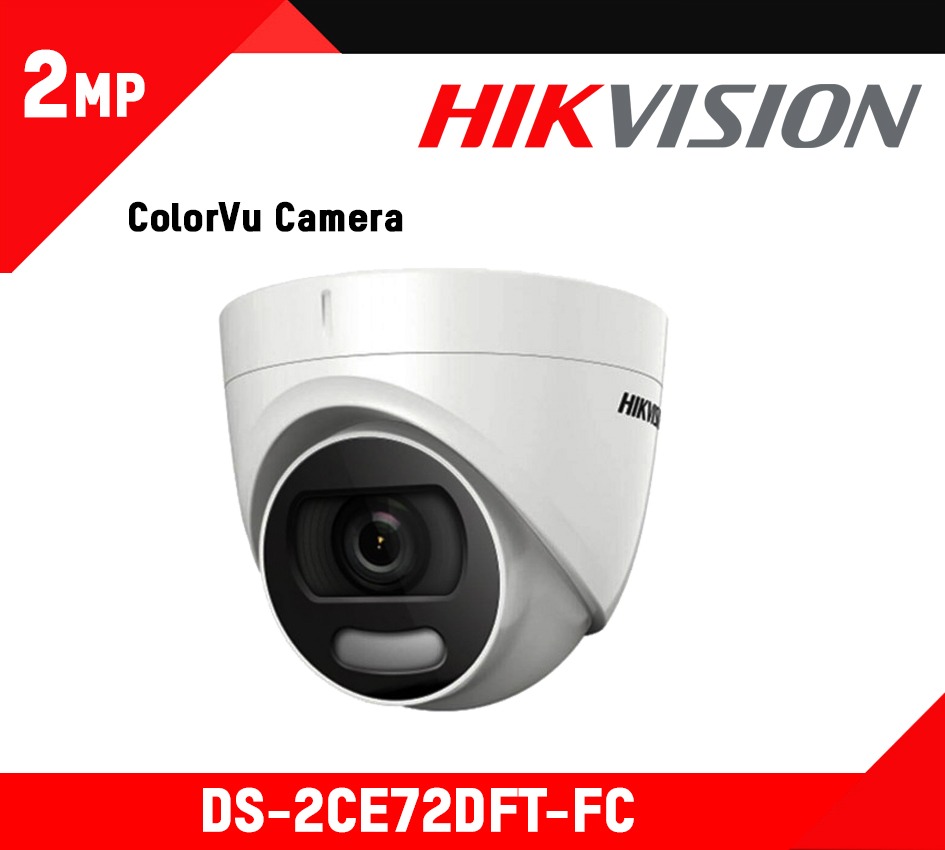

Data Sheet : DS-2CE72DFT-FC
User Manual : DS-2CE72DFT-FC
| Camera | |
|---|---|
| Image Sensor : | 2 MP CMOS |
| Signal System : | PAL/NTSC |
| Frame Rate : | TVI: 1080p@30fps, 1080p@25fps AHD: 1080p@30fps, 1080p@30fps CVI: 1080p@30fps, 1080p@25fps CVBS: PAL/NTSC |
| Resolution : | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.0008 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time : | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Lens : | 3.6 mm, 6 mm fixed lens |
| Horizontal Field Of View : | 3.6 mm, horizontal FOV: 83.0°, vertical FOV: 44.4°, diagonal FOV: 98.0° 6 mm, horizontal FOV: 51.0°, vertical FOV: 28.5°, diagonal FOV: 58.7° |
| Lens Mount : | M16 |
| Day & Night : | Color |
| WDR (Wide Dynamic Range) : | ≥120 dB |
| Angle Adjustment : | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
| Menu | |
| White Light : | AUTO/OFF |
| Image Mode : | STD/HIGH-SAT |
| AGC : | Support |
| White Balance : | ATW/MANUAL |
| HLC : | Yes |
| BLC (Backlight Compensation) : | Yes |
| Language : | English |
| Interface | |
| Video Output : | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Operating Condition : | -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation) |
| Power Supply : | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption : | Max. 3 W |
| Protection Level : | IP67 |
| Material : | Enclosure: Plastic Main Body: Metal |
| IR Range : | Up to 20 m |
| Communication | HIKVISION-C |
| Dimensions : | Φ 109.82 mm × 85.56 mm (Φ 4.32″ × 3.37″) |
| Weight : | Approx. 336 g (0.74 lb.) |
