Description

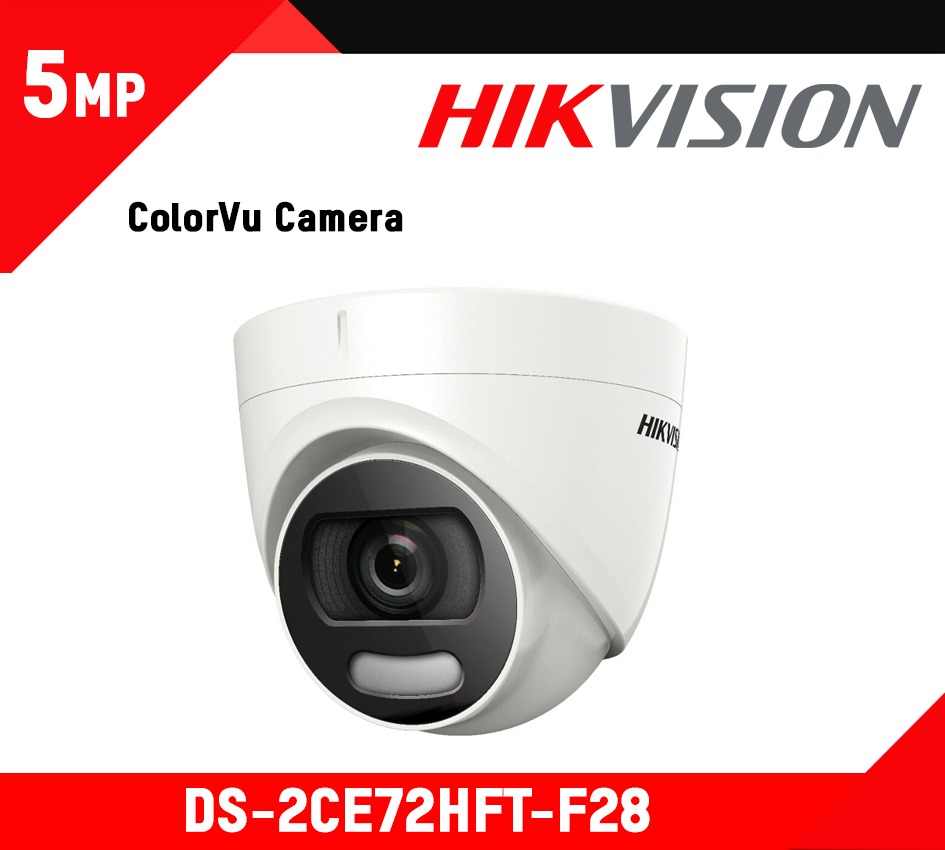

Datasheet : DS-2CE72HFT-F28
User Manual : DS-2CE72HFT-F28
Quick Start Guide : DS-2CE72HFT-F28
Camera
- Image Sensor: 5 MP CMOS
- Max. Resolution: 2560 (H) × 1944 (V)
- Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Day & Night: Color
- Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
- Signal System: PAL/NTSC
- Light Alarm: Yes
Lens
- Lens Type: 2.8 mm fixed lens
- Focal Length & FOV: 2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
- Lens Mount: M16
- Image Parameters Switch: STD/HIGH-SAT
- Image Settings: Brightness, Sharpness, Mirror, Smart Light
- Frame Rate
- TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps
- CVI: 4MP@30fps, 4MP@25fps
- AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
- CVBS: PAL/NTSC
- Day/Night Mode: Color
- Wide Dynamic Range (WDR): ≥130 dB
- Image Enhancement: BLC, HLC
- White Balance: ATW/MANUAL
- White Light: AUTO/OFF
- AGC: Support
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material
- Main Body: Metal
- Enclosure: Plastic
- Dimension: Φ 109.82 mm × 85.56 mm (4.32″ × 3.37″), Approx. 350 g ( 0.77 lb.)
- Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- Communication: HIKVISION-C
- Language: English
- Power Supply: 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
- Consumption: Max. 3.5 W
- White Light Range: Up to 20m
Approval
- Protection: IP67
