Description

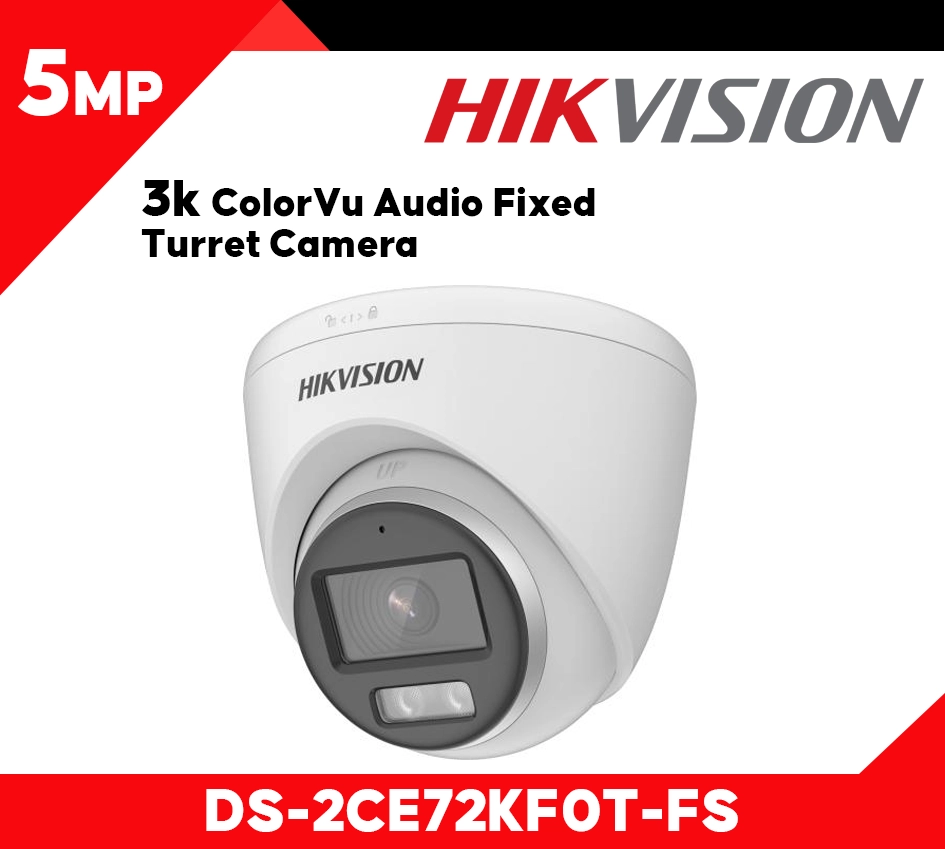

Datasheet: DS-2CE72KF0T-FS
User Manual: DS-2CE72KF0T-FS
Quick Start Guide: DS-2CE72KF0T-FS
Specification
Camera
- Image Sensor: 3K CMOS
- Signal System: PAL/NTSC
- Max. Resolution: 2960 (H) × 1665 (V)
- Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night: 24/7 Color Imaging
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Lens
- Lens Type: 2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°
- 3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°
- Lens Mount: M12
Illuminator
- Supplement Light Type: White Light
- Supplement Light Range: Up to 40 m
- Frame Rate
- TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps
- AHD: 5 MP@20fps, 4 MP@25fps/30fps
- CVI: 4 MP@25fps/30fps
- CVBS: PAL/NTSC
- Wide Dynamic Range (WDR): Digital WDR
- Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
- Day/Night Mode: Color
- White Balance: Auto/Outdoor/Global/Manual
- Image Enhancement: DWDR, BLC, HLC, Global, HLS
- Noise Reduction: 2D DNR
- Image Settings: Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light, AGC
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
- Alarm: Solid Light Alarm (White Light)
- Audio: Built-in mic
General
- Language: English
- Operating Condition: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
- Material: Main body: Metal, Enclosure: Plastic
- Communication: HIKVISION-C
- Dimension: Φ 109.98 mm × 98.27 mm (Φ 4.33″ × 3.87″)
- Weight: Approx. 318 g (0.70 lb.)
- Power: 12 VDC ± 25%, Max. 3.5 W,
*You are recommended to use one power adapter to supply the power for one camera.
Approval
- Protection: IP67
