Description
Quick Start Guide: DS-2CE76D0T-EXIPF
Specification
Camera
- Model: DS-2CE76D0T-EXIPF

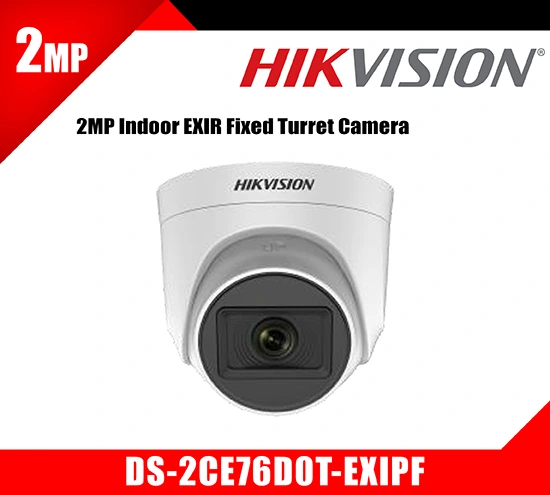

- Product Name: 2MP Indoor EXIR Fixed Turret Camera
- Image Sensor: 2 MP CMOS
- Signal System: PAL/NTSC
- Resolution: 1920 (H) × 1080 (V)
- Frame Rate
- TVI: 1080p@25fps/30fps
- AHD: 1080p@25fps/30fps
- CVI: 1080p@25fps/30fps
- CVBS: PAL/NTSC
- Min. Illumination: 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens: 2.8 mm, 3.6 mm Fixed Lens
- Field Of View
- 2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°
- 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
- Lens Mount: M12
- Day & Night: IR Cut Filter
- WDR (Wide Dynamic Range): Digital WDR
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Image Mode: STD/HIGH-SAT
- AGC: Yes
- Day/Night Mode: Auto/Color/BW (Black and White)
- White Balance: Auto
- AE (Auto Exposure) Mode: BLC;Global;DWDR
- Noise Reduction: 2D DNR
- Language: English
- Function: Sharpness;Smart IR;Mirror;Brightness
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
- Power Supply: 12 VDC ± 25%
- Consumption: Max. 3.3 W
- Material: Plastic
- IR Range: Up to 20 m
- Communication: HIKVISION-C
- Dimension: Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
- Weight: Approx. 195g (0.43 lb.)
