Description

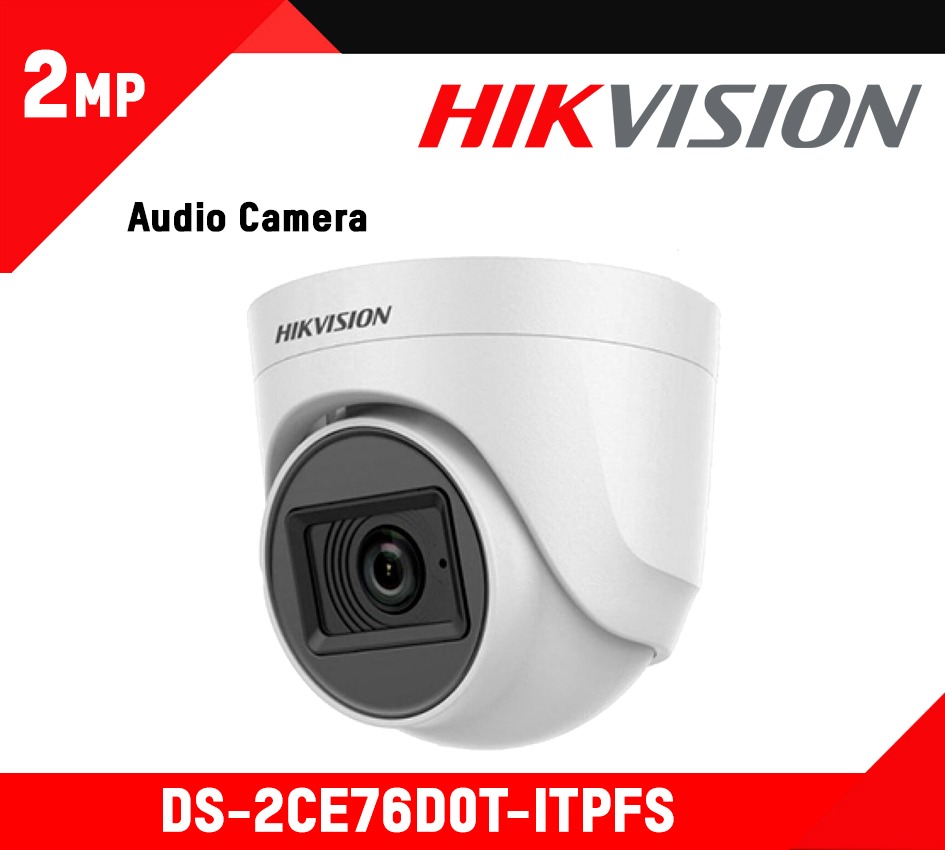

Datasheet: DS-2CE76D0T-ITPFS
User Manual: DS-2CE76D0T-ITPFS
Camera
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
- 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8
- Lens Mount: M12
- Image Parameters Switch: STD/HIGH-SAT
- Image Settings: Brightness, Sharpness, Mirror, Smart IR
- Frame Rate
- TVI: 1080P@30fps, 1080P@25fps
- AHD: 1080P@30fps, 1080P@25fps
- CVI: 1080P@30fps, 1080P@25fps
- CVBS: PAL/NTSC
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: Yes
- White Balance: Auto/Manual
- AGC: Support
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material: Plastic
- Dimension: Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
- Weight: Approx. 140.5 g (0.31 lb.)
- Operating Condition: ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: HIKVISION-C
- Language: English
- Power Supply: 12 VDC ± 25%
- Consumption: Max. 2.7 W
- IR Range: Up to 20 m
