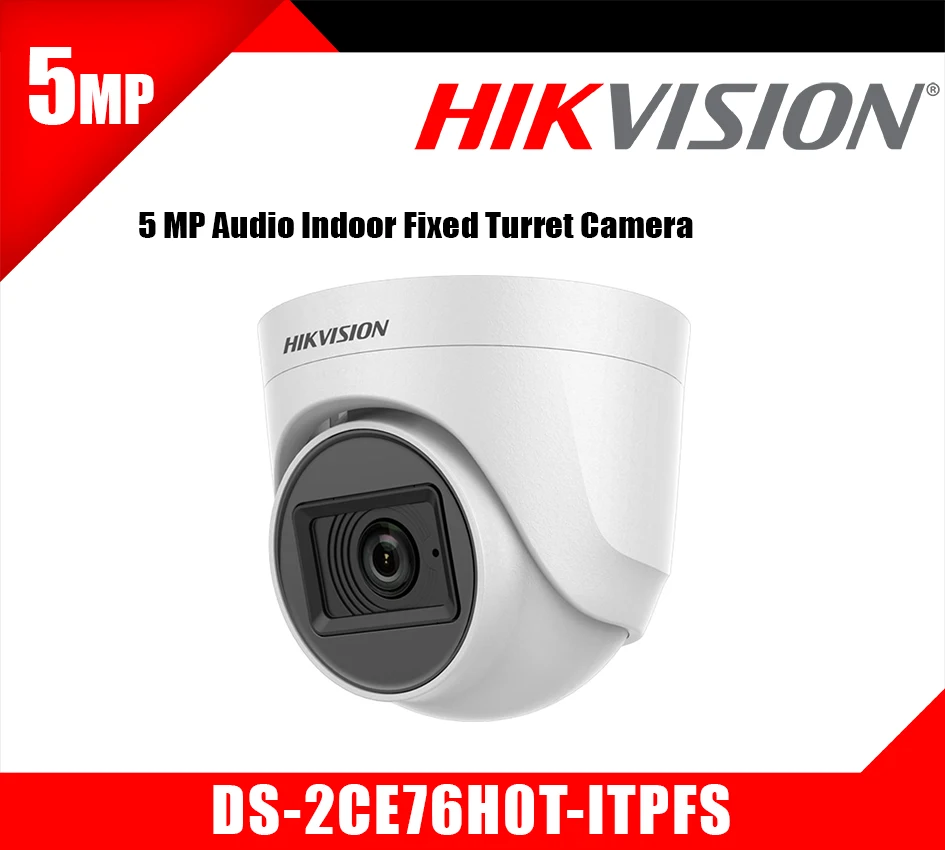

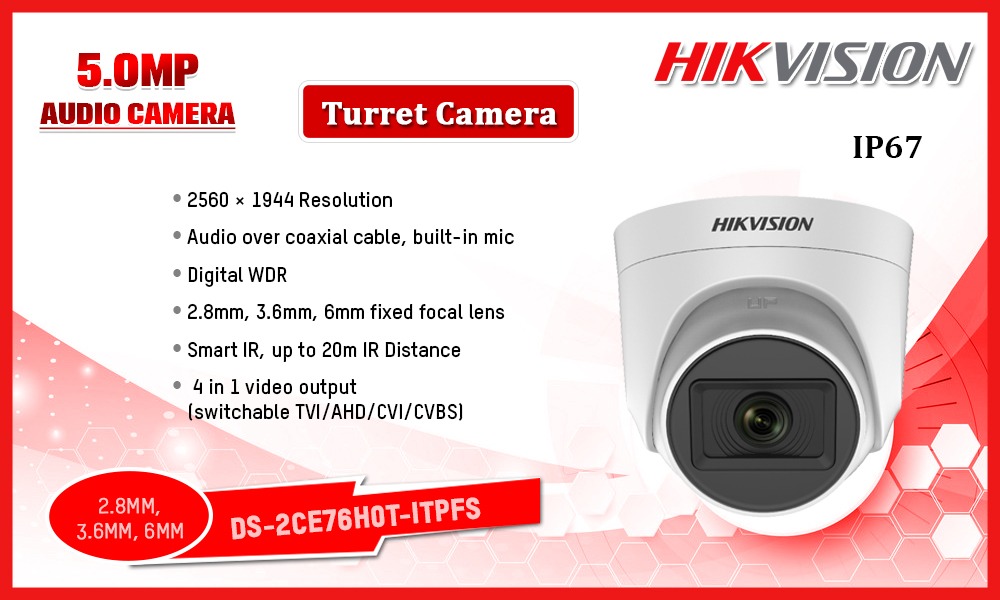

DS-2CE76H0T-ITPFS

Description

Datasheet: DS-2CE76H0T-ITPFS

User Manual: DS-2CE76H0T-ITPFS

Camera

• Image Sensor: 5 MP CMOS
• Max. Resolution: 2560 (H) × 1944 (V)
• Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time
  • PAL: 1/25 s to 1/50, 000 s
  • NTSC: 1/30 s to 1/50, 000 s
• Day & Night: ICR
• Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°
• Signal System: PAL/NTSC

Lens

• Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV
  • 2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7°
  • 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°
  • 6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
• Lens Mount: M12


• Parameters Switch: STD/HIGH-SAT
• Settings: Brightness, Sharpness, Mirror, Smart IR
• Frame Rate
  • TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
  • CVI: 4MP@30fps, 4MP@25fps
  • AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
  • CVBS: PAL/NTSC
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): Digital WDR
• White Balance: ATW/MANUAL
• AGC: Support

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

General

• Material: Plastic
• Dimension: Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
• Weight: Approx. 140.5 g (0.31 lb.)
• Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
• Communication: HIKVISION-C
• Language: English
• Power Supply: 12 VDC ± 25%
  *You are recommended to use one power adapter to supply the power for one camera.
• Consumption: Max. 3.7 W
• IR Range: Up to 20 m
