Description
User Manual:DS-2CE76H8T-ITMF

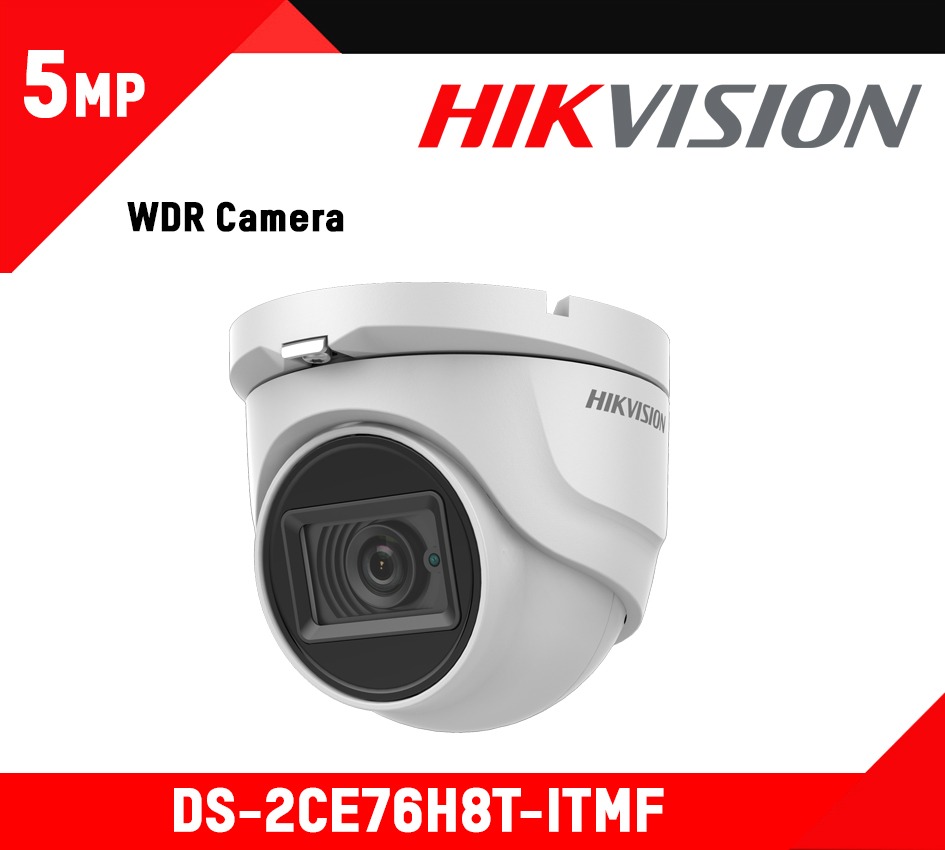

Data Sheet: DS-2CE76H8T-ITMF
| Camera |
| Lens : |
2.8 mm, 3.6 mm, 6 mm fixed lens |
| Horizontal Field Of View : |
98° (2.8 mm), 78° (3.6 mm), 48° (6 mm) |
| Lens Mount : |
M12 |
| Day & Night : |
IR cut filter |
| Synchronization : |
Internal synchronization |
| WDR (Wide Dynamic Range) : |
≥ 130 dB |
| Angle Adjustment : |
Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360° |
| Image Sensor : |
5 megapixel progressive scan CMOS |
| Signal System : |
PAL/NTSC |
| Frame Rate : |
TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC |
| Resolution : |
2560 (H) × 1944 (V) |
| Min. Illumination : |
Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time : |
PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Menu |
| AGC : |
Yes |
| Day/Night Mode : |
Auto/Color/BW (Black and White) |
| White Balance : |
Auto/Manual |
| Privacy Mask : |
4 programmable privacy masks |
| Motion Detection : |
4 programmable areas |
| Backlight Compensation : |
Yes |
| WDR : |
Yes |
| 3D DNR (Digital Noise Reduction) : |
Level 1 to 9 |
| Language : |
English |
| Functions : |
Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| Interface |
| Video Output : |
1 HD analog output |
| Switch Button : |
TVI/AHD/CVI/CVBS |
| General |
| Operating Condition : |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) |
| Power Supply : |
12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption : |
Max. 5.8 W |
| Material : |
Metal |
| IR Range : |
Up to 30 m |
| Communication : |
Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimensions : |
90 mm × 79.37 mm (3.54″ × 3.12″) |
| Weight : |
Approx. 300 g (0.66 lb.) |
| Ingress Protection : |
IP67 |
