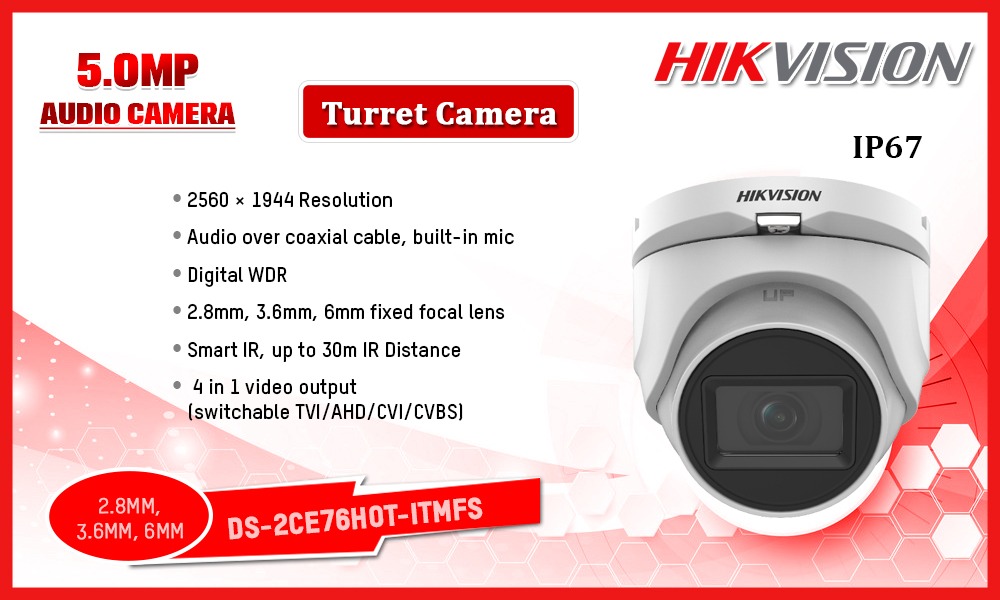

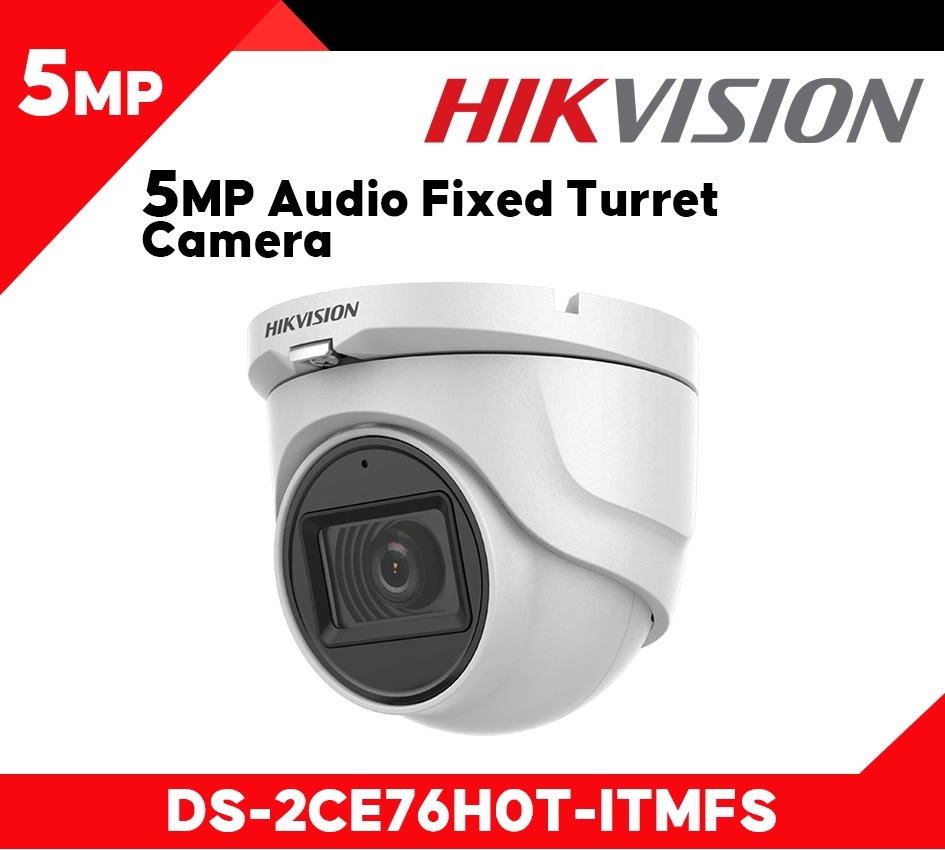

DS-2CE76HOT-ITMFS

Description

Camera

• Image Sensor: 5 MP CMOS
• Signal System: PAL/NTSC
• Frame Rate
  • TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
  • CVI: 4MP@30fps, 4MP@25fps
  • AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
  • CVBS: PAL/NTSC
• Resolution: 2560 (H) × 1944 (V)
• Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Lens: 2.8 mm, 3.6 mm, 6 mm fixed lens
• Horizontal Field Of View2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7° 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9° 6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
• Lens Mount: M12
• Day & Night: ICR
• WDR (Wide Dynamic Range): Digital WDR
• Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°

Menu

• Image Mode: STD/HIGH-SAT
• AGC: Support
• Day/Night Mode: Auto/Color/BW (Black and White)
• White Balance: ATW/MANUAL
• Language: English
• Functions: Brightness, Sharpness, Mirror, Smart IR

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS
