Description

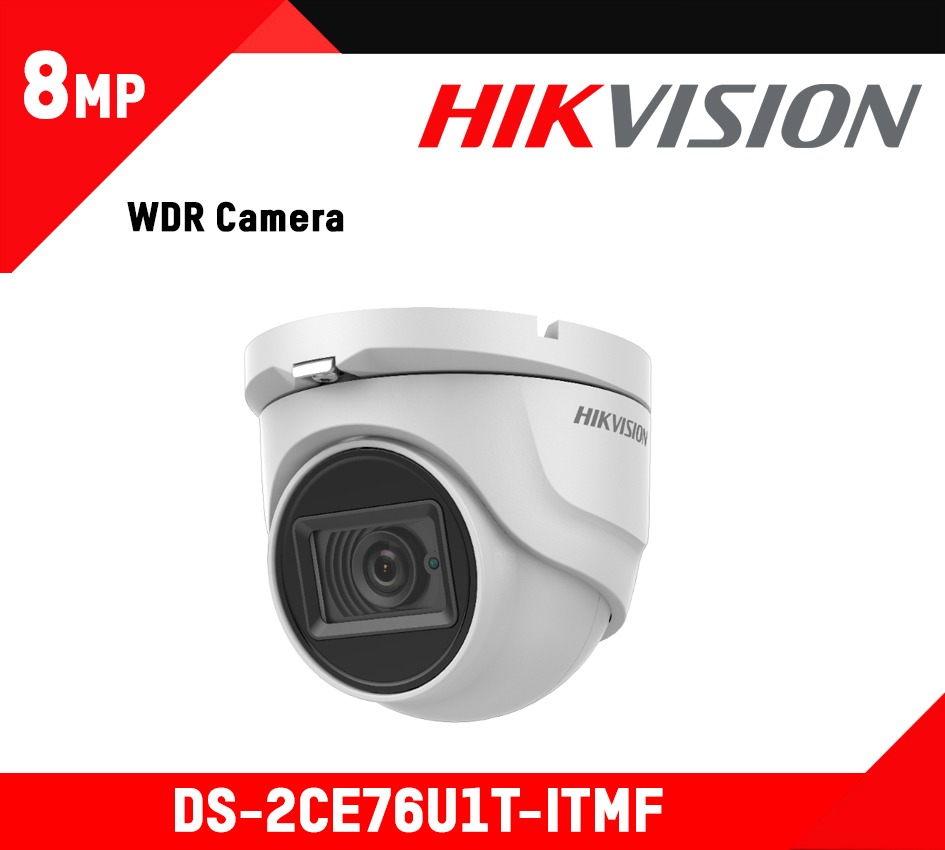

Datasheet: DS-2CE76U1T-ITMF
User Manual: DS-2CE76U1T-ITMF
Camera
- Image Sensor: 8.29 megapixel progressive scan CMOS
- Max. Resolution: 3840 (H) × 2160 (V)
- Min. Illumination: Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/12.5 s to 1/50,000 s,NTSC: 1/15 s to 1/50,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
- Lens Mount: M16
- Image Settings: Brightness, Sharpness, DNR, Smart IR, HLC
- Frame Rate
- TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
- CVI: 8MP@12.5fps, 8MP@15fps
- AHD: 8M@12.5fps, 8M@15fps
- CVBS: 960H P/N
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): Digital WDR/ 105 dB
- Image Enhancement: BLC
- White Balance: Auto/Manual
- AGC: Yes
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material: Metal
- Dimension: 90 mm × 79.37 mm (3.54″ × 3.12″ )
- Weight: Approx. 310 g (0.68 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Language: English
- Power Supply: 12 VDC ±25%,*You are recommended to use one power adapter to supply the power for one camera.
- Consumption: Max. 5.3 W
- IR Range: Up to 30 m
Approval
- Protection: IP67
