Description
Model |

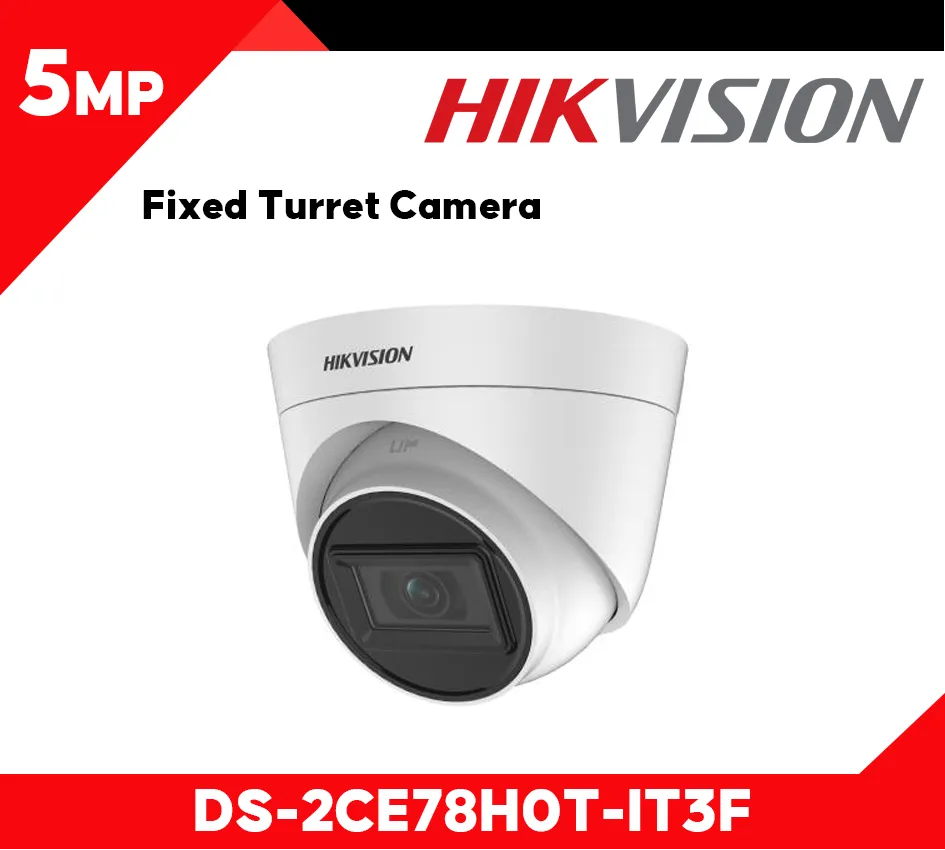

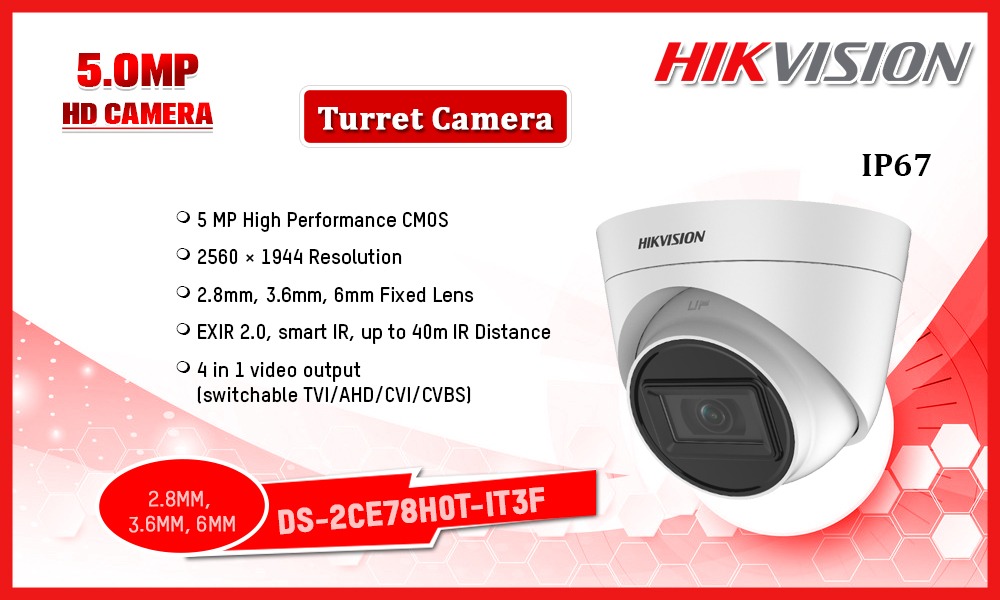

DS-2CE78H0T-IT3F |
|---|---|
| Sensor | 5 MP CMOS |
| Lens Mount | M12 |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.01 Lux B&W: 0 Lux |
| Shutter Speed | 1/50,000 to 1/30 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 360° Vertical: 0 to 75° |
| Video Output Connectors | 1 x BNC (AHD / HD-CVI / HD-TVI / Composite) |
| Output Formats | AHD, HD-TVI: 2560 x 1944 at 20 fps AHD, HD-CVI, HD-TVI: 2688 x 1520 at 30 fps Composite: 640 x 480 |
| Automatic Gain Control | Yes |
| Up-the-Coax Communication | Yes |
| Supported Control Protocols | HIKVISION-C |
| Event Trigger | None |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 0 to 90% |
| IP Rating | IP67 |
| Media/Memory Card Slot | None |
| Pan/Tilt | None |
| I/O Connections | 1 x BNC 1 x Power |
| IR Range | 131.2′ / 40 m |
| Supported Languages | English |
| Internal Storage | None |
| Power Source | DC |
| Power Consumption | DC: 4.3 W |
| Material of Construction | Metal (Unspecified Type), Plastic |
| Dimensions | ø: 4.3 x H: 3.6″ / ø: 109.8 x H: 91.0 mm |
| Weight | 0.7 lb / 303 g |
