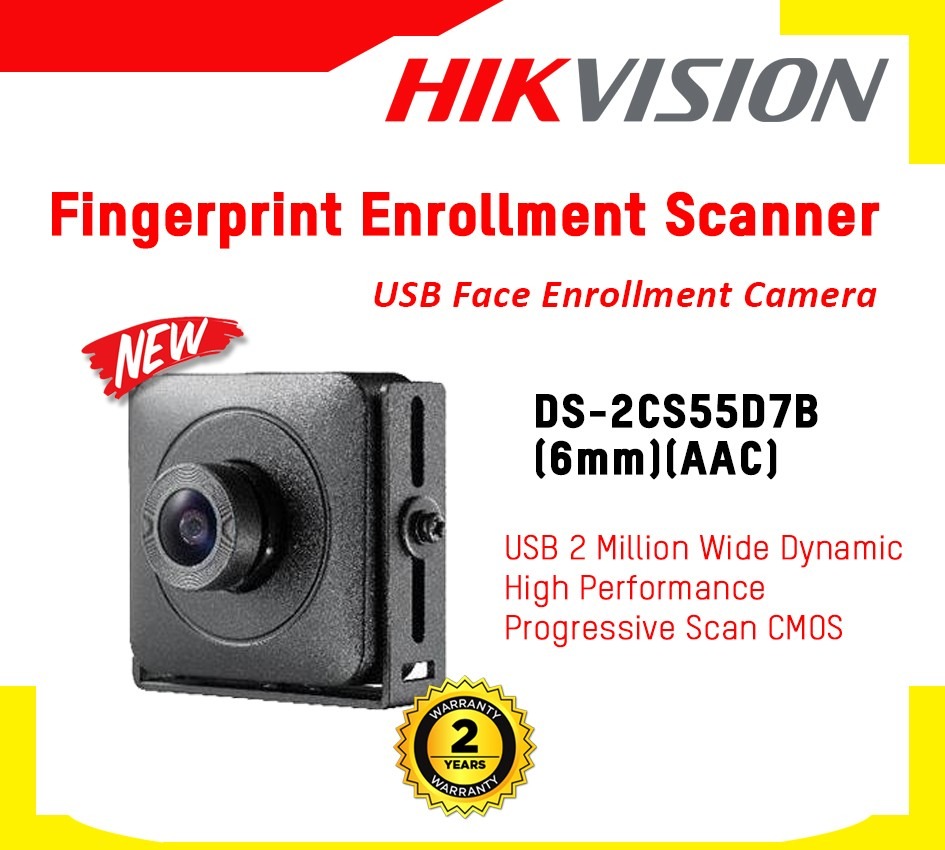

DS-2CS55D7B (6mm) (AAC)

Model

DS-2CS55D7B(6mm)(AAC)

Video Camera

2 million wide dynamic USB micro camera

Sensor Type

2.0 Mega Progressive Scan CMOS

Effective Pixels

1920(horizontal)×1080(vertical)

Signal System

PAL/NTSC

Minimum Illumination

0.1Lux @(F1.2, AGC ON)

Shutter

1/25 (1/30) second to 1/15,000 second

Lens

2.1mm @F2.2 Field of view: horizontal 137°, vertical 80°, diagonal 162°
2.8mm @F2.2 Field of view: horizontal 115°, vertical 60°, diagonal 142°
3.6mm @F2 .2 Field of view: horizontal 91°, vertical 49°, diagonal 107°
6mm @F2.2 Field of view: horizontal 60°, vertical 32°, diagonal 70°

Outgoing Wire Length

2m

Lens interface type

M12

Video Camera

Day and night conversion mode

Single color

Wide dynamic range

Greater than 120dB

Synchronously

Internal synchronization

Video frame rate

1920×1080@30fps 1920×1080@25fps 1280×960@30fps 1280×960@25fps
1280×720@30fps 1280×720@25fps 800×600@30fps 800×600@25fps
640×480@30fps 640×480@25fps 352×288@30fps 352×288@25fps
320×240@30fps 320×240@25fps 160×120@30fps 160×120@25fps

Signal to noise ratio

Greater than 62Db

Interface

Video output

USB 2.0

General specification

Working temperature and humidity

-30℃~70℃, humidity less than 90% (no condensation)

power supply

DC5V±10% (USB interface)

Power consumption

1.5W MAX

Size(mm)

40.9×34.5×31

weight

150g
