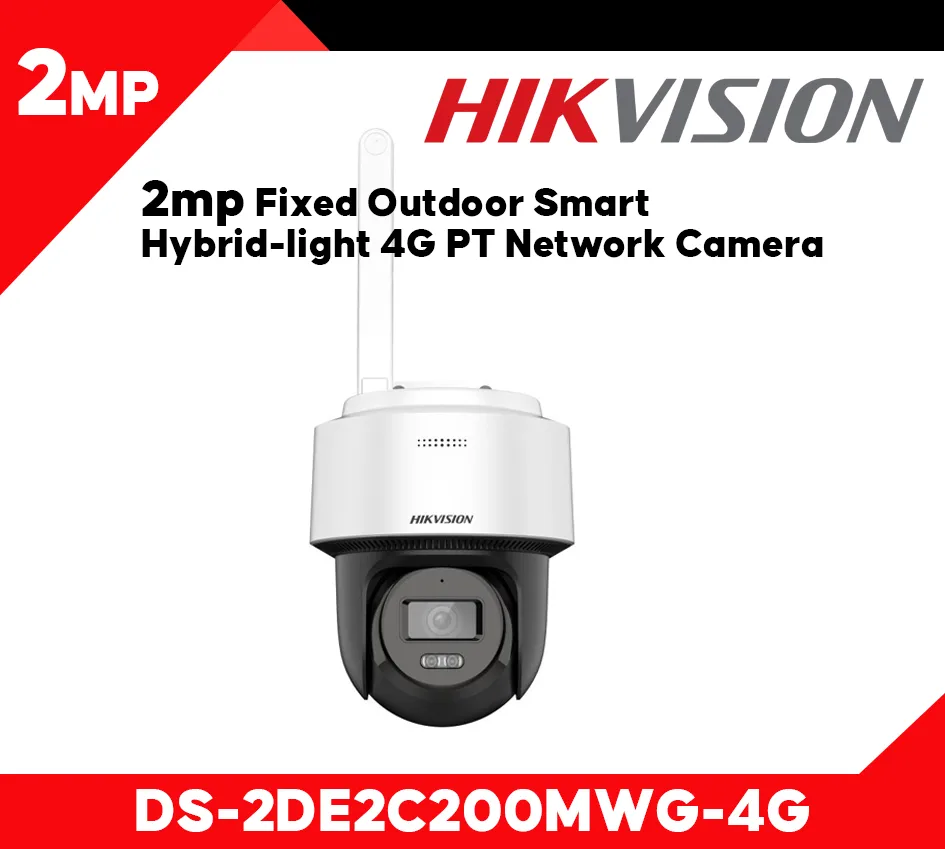

DS-2DE2C200MWG-4G Hikvision 2MP Fixed Outdoor Smart Hybrid-light 4G PT Network Camera Colombo CCTV Srilanka
DS-2DE2C200MWG-4G
New
Availability: not in Stock

DS-2DE2C200MWG-4G

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • Support 4G LTE data transmission
  • High quality imaging with 2 MP resolution
  • Support Human and Vehicle Detection
  • Built-in microphone and speaker, support two-way audio
  • Smart Hybrid Light: advanced technology up to 30 meters
  • Support on-board storage up to 512 GB (SD card slot)
  • Water and dust resistant (IP66)
Categories:

Description


Datasheet: DS-2DE2C200MWG-4G

User Manual: DS-2DE2C200MWG-4G

Quick Start Guide: DS-2DE2C200MWG-4G

Camera

  • Image Sensor: 1/3″ Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.04 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter

Lens

  • Lens Type: Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV
    • 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°
    • 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F2.0

PTZ

  • Movement Range (Pan): 0° to 345°
  • Movement Range (Tilt): 0° to 80°
  • Pan Speed: Up to 25°/s
  • Tilt Speed: Up to 20°/s

DORI

  • DORI
    • 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
    • 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

  • Supplement Light Type: IR,White Light
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video

  • Main Stream
    • 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
    • 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream
    • 50 Hz: 25 fps (768 x 432)
    • 60 Hz: 30 fps (768 x 432)
  • Video Compression
    • Main stream: H.265/H.264,
    • Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Region of Interest (ROI): 1 fixed region for main stream

Audio

  • Audio Type: Mono sound
  • Audio Sampling Rate: 8 kHz/16 kHz
  • Environment Noise Filtering: Yes
  • Audio Compression: G.711/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

Network

  • API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
  • Security: Password protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
  • Simultaneous Live View: Up to 6 channels
  • Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP, SNMP
  • User/Host
    • Up to 32 users
    • 3 user levels: administrator, operator, and user
  • Client: iVMS-4200,Hik-Connect
  • Web Browser: Local service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+

Mobile Communication

  • Standard: LTE-TDD,LTE-FDD
  • Frequency
    • EU: LTE-FDD: B1/3/5/7/8/20/28

    • IN:

      • LTE-FDD: B1/3/5/8

      • LTE-TDD: B34/38/39/40/41

    • LA: LTE-FDD: B2/3/4/5/7/8/28/66

    • NA: LTE-FDD: B2/4/5/12/13/17/66/71

  • Uplink and Downlink Data Rate
    • EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps
    • IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps
    • LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps
    • NA: uplink: 50 Mbps, downlink: 150 Mbps
  • SIM Card Type: Nano SIM


  • Wide Dynamic Range (WDR): Digital WDR
  • SNR: ≥ 52 dB
  • Privacy Mask: 4 programmable polygon privacy masks
  • Day/Night Switch: Day,Night,Auto,Schedule
  • Image Enhancement: BLC,HLC,3D DNR
  • Image Settings: Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interface

  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in Microphone: 1 built-in microphone
  • Built-in Speaker: Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
  • Reset Key: Yes

Event

  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, auto-tracking lite

General

  • Power: 12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    *A switching adapter is included in the package.

  • Dimension
    • 131.9 mm × 164 mm × 312.6 mm (5.19″ × 6.46\” × 12.31\”)
    • 131.9 mm × 164 mm × 332.6 mm (5.19 × 6.46\” × 13.10\”)”
  • Material: Plastic
  • Package Dimension: 224 mm × 178 mm × 230 mm (8.82″ × 7.01″ × 9.06″)
  • Weight: Approx. 600 g (1.32 lb.)
  • With Package Weight: Approx. 900 g (1.98 lb.)
  • Storage Conditions: -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Language: English, Ukrainian
  • General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval

  • EMC
    • CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
    • IC: ICES-003: Issue 7,
    • KC: KN32: 2015, KN35: 2015
  • Safety
    • CB: IEC 62368-1: 2014+A11,
    • CE-LVD: EN 62368-1: 2014/A11: 2017,
    • BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • Environment
    • CE-RoHS: 2011/65/EU,
    • WEEE: 2012/19/EU,
    • Reach: Regulation (EC) No 1907/2006
  • Protection: IP66: IEC 60529-2013
