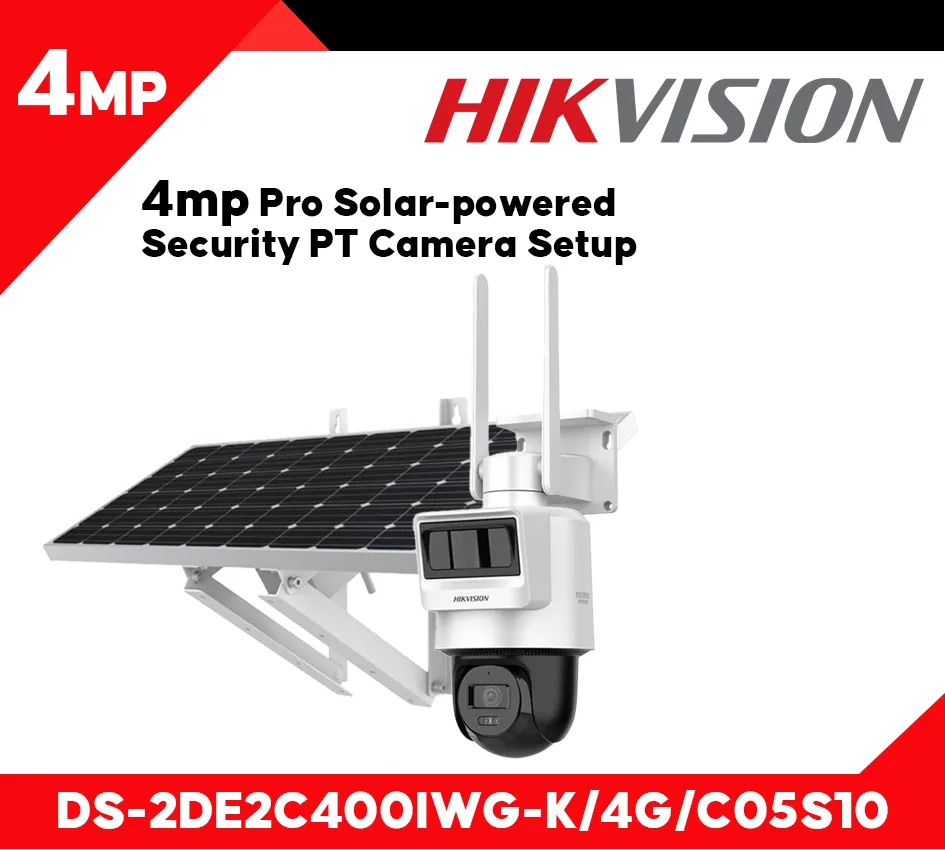

DS-2DE2C400IWG-K/4G/C05S10

Description

Datasheet: DS-2DE2C400IWG-K/4G/C05S10

User Manual: DS-2DE2C400IWG-K/4G/C05S10

Quick Start Guide: DS-2DE2C400IWG-K/4G/C05S10

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
  • 2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°
  • 4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

PTZ

• Movement Range (Pan): 0° to 340°
• Movement Range (Tilt): 0° to 80°
• Pan Speed: Up to 25°/s
• Tilt Speed: Up to 25°/s

DORI

• DORI
  • 2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m
  • 4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream
  • 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression
  • Main stream: H.265/H.264,
  • Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Region of Interest (ROI): 1 fixed region for main stream

Audio

• Audio Type: Mono sound
• Audio Sampling Rate: 8 kHz/16 kHz
• Environment Noise Filtering: Yes
• Audio Compression: G.722.1/G.711/MP2L2/PCM/G.726/AAC-LC
• Audio Bit Rate: 16 Kbps(G.722.1)/64 Kbps(G.711ulaw/G.711alaw)/32~160 Kbps(MP2L2)/8~48 Kbps(PCM)/16 Kbps(G.726)/16~64 Kbps(AAC-LC)

Network

• API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
• Security: Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live View: Up to 6 channels
• Protocols: TCP/IP, DHCP, IPv4
• User/Host: Up to 32 users

  3 user levels: administrator, operator, and user

• Client: Hik-Connect,HikCentral Professional, Hik-Partner Pro
• Web Browser: Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+

Mobile Communication

• Standard: LTE-FDD,LTE-TDD,UMTS
• Frequency
  • EU: LTE-FDD: B1/3/5/7/8/20/28
  • IN: LTE-FDD: B1/3/5/8, LTE-TDD: B34/38/39/40/41
  • LA: LTE-FDD: B2/3/4/5/7/8/28/66
  • NA: LTE-FDD: B2/4/5/12/13/17/66/71
  • UMTS: B2/4/5
• Uplink and Downlink Data Rate
  • EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps
  • IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps
  • LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps
  • NA: uplink: 50 Mbps, downlink: 150 Mbps
• SIM Card Type: Nano SIM


• Wide Dynamic Range (WDR): Digital WDR
• SNR: ≥ 52 dB
• Day/Night Switch: Day,Night,Auto,Schedule
• Image Enhancement: BLC,HLC,3D DNR
• Image Settings: Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Transducer

• Transducer Type: PIR + Radar
• Detection Angle: Horizontal: 80°, vertical: 30°
• Detection Range: Up to 12 m

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: 1 built-in microphone
• Built-in Speaker: 1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
• Reset Key: Yes

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing

General

• Power
  • Power Consumption and Current:
    • Typical power scenarios: 1.85 W (4G working)
    • Standby scenarios: 80 mW
    • Max. Power consumption: 7 W
    • Power Supply: 12 VDC ± 25%

      *For debugging only

      10 W (deviation: ± 5%) Solar panels

  • Power Interface:

    • Power supply interface: four-core aviation connector

    • Extened solar panel: four-core aviation connector

• Dimension: 133.1 mm × 177.64 mm × 382.44 mm/412.44 mm (5.24″ × 6.99″ × 15.06″/16.24″)
• Material: Plastic
• Package Dimension: 375 mm × 305 mm × 398 mm (14.76″ × 12.01″ × 15.67″)
• Weight: Approx. 850 g (1.87 lb.)
• With Package Weight: Approx. 5400 g (11.88 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: 0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email

Battery

• Battery Type: Ternary Lithium
• Cycle Lifetime
  • 27 hours (1.85 W)
  • Full charge battery runtime without solar input.
• Battery Voltage: 9 V to 12.6 V
• Capacity: 50.76 Wh
• Max. Charging Voltage: 12.6 V
• Max. Output Voltage: 12.6 V
• Operating Temperature
  • Charging: 0 °C to 45 °C (32 °F to 113 °F)
  • Discharging: -20 °C to 55 °C (-4 °F to 131 °F)
• Battery Life: More than 800 cycles

Approval

• RF

  CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)

  *CE certification is only for the device sold in the European region.

• EMC

  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015

• Safety

  CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment

  CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

• Protection: IP66: IEC 60529-2013
