Description
Datasheet: DS-2DE5225IW-AE
User Manual: DS-2DE5225IW-AE
Quick Start Guide: DS-2DE5225IW-AE

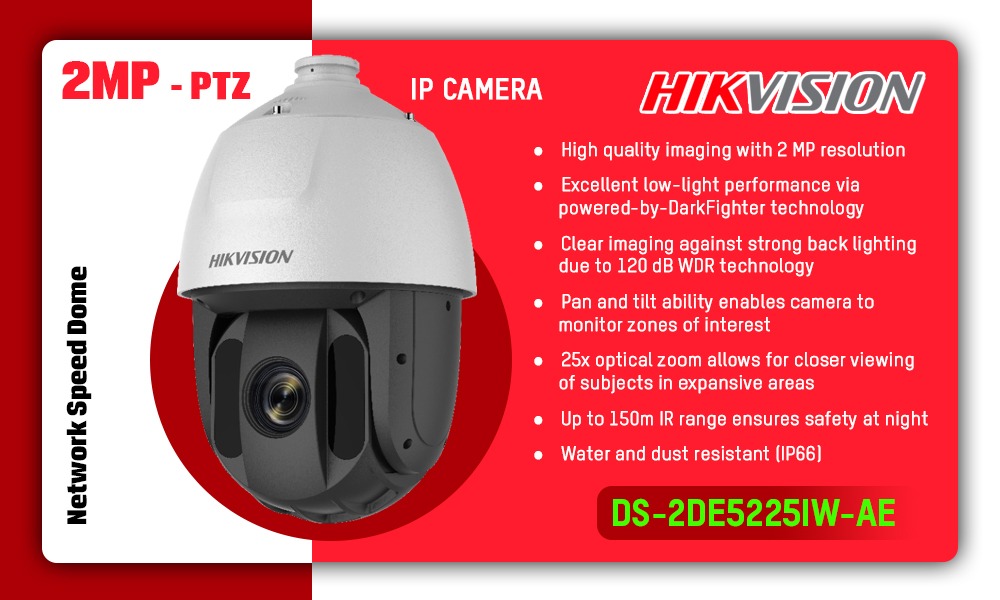

| Model | DS-2DE5225IW-AE |
|---|---|
| Standard: | TCP/IP |
| Sensor: | 1/2.8 ” Progressive Scan CMOS |
| Matrix size: | 2.1 Mpx |
| Resolution: | 1920 x 1080 – 1080p 1280 x 960 – 1.3 Mpx 1280 x 720 – 720p |
| Scanning system: | Progressive |
| Lens: | 4.8 … 120 mm |
| View angle: | 58 ° … 2.5 ° (manufacturer data) 54 ° … 3.0 ° (our tests result) |
| Optical zoom: | x 25 |
| Digital zoom: | x 16 |
| Range of IR illumination: | 150 m |
| S/N ratio: | > 52 dB (AGC off) |
| Video output: |  |
| Preset rotation speed: |
|
| Rotation speed (manual control): | 0.1 °/s … 120 °/s (horizontal) 0.1 °/s … 80 °/s (vertical) |
| Horizontal rotation range: | 360 ° – continuous |
| Vertical rotation range: | -15 ° … 90 ° |
| RS-485 interface: | |
| Number of presets: | 300 |
| Horizontal scan: |  |
| Route settings: | 8 |
| Park action: | Call the set function (tour, scan, etc.) after specified dwell time |
| Image compression method: | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Bitrate: | 32 … 16384 kbps |
| Alarm inputs / outputs: | |
| Audio: | |
| Main stream frame rate: | 1 … 25 fps – 1080p 1 … 50 fps – 1.3 Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6, HTTP, HTTPS, IEEE 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| WEB Server: | Built-in, NVR compliance |
| Max. number of on-line users: | 20 |
| ONVIF: | 16.12 |
| Memory card slot: | Micro SD memory cards up to 256GB support (possible local recording) |
| Mobile phones support: | Port no.: 8000 or access by a cloud (P2P)
|
| Default admin user / password: | admin / – The administrator password should be set at the first start |
| Default IP address: | 192.168.1.64 |
| Web browser access ports: | 80 |
| PC client access ports: | Port no.: 8000 or access by a cloud (P2P) – iVMS-4200 application |
| Mobile client access ports: | 8000 |
| Port ONVIF: | 80 |
| RTSP URL: |
|
| Main features: |
|
| Power supply: |
|
| Power consumption: | ≤ 30 W |
| Housing: | Speed Dome, Metal / Plastic |
| Color: | White |
| Operation temp: | -30 °C … 65 °C |
| “Index of Protection”: | IP66 |
| Weight: | 3.34 kg |
| Dimensions: | Ø 208 x 345 mm (without bracket) |
| Supported languages: | Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Finnish, French, Greek, Spanish, Dutch, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Vietnamese, Italian |
