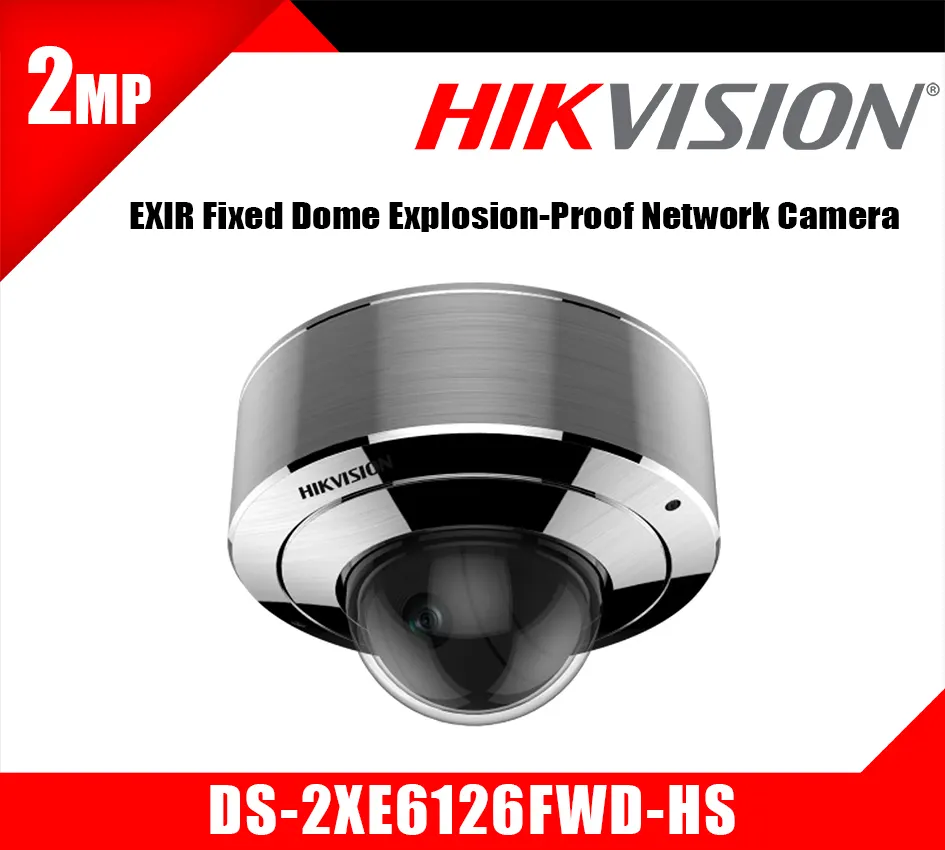

DS-2XE6126FWD-HS

Description

Datasheet: DS-2XE6126FWD-HS

Faq: DS-2XE6126FWD-HS

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination
  • Color 0.003lux @(F1.2,AGC ON); 0.005Lux @ (F1.6, AGC ON)
  • B/W 0.001lux @(F1.2,AGC ON); 0.017Lux @ (F1.6, AGC ON);
• Shutter Speed: 1 s to 1/100,000 s
• Slow Shutter: Support
• Angle Adjustment
  • 2mm: pan: 0° to 340°, tilt: 0° to 60°
  • 2.8 mm, 4 mm, 6 mm: 0° to 340°, tilt: 0° to 75°
• DNR: 3D DNR
• WDR: 120dB
• Day & Night: Electronic
• Lens Mount: M12

Lens

• Aperture: 2 mm@F2.2, 2.8 mm@F1.6, 4 mm@F1.6, 6 mm@F1.6
• FOV
  • 2 mm: horizontal FOV 126.5°, vertical FOV 73.8°, diagonal FOV 144°
  • 2.8 mm: horizontal FOV 108°, vertical FOV 59.3°, diagonal FOV 129°
  • 4 mm: horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102.3°
  • 6 mm: horizontal FOV 52.8°, vertical FOV 29.7°, diagonal FOV 60.7°
• Focal Length: 2 mm, 2.8 mm, 4 mm, 6 mm, optional

Audio

• Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Audio I/O: Yes


• Image Enhancement: BLC, 3D DNR, HLC, defog, EIS
• Target Cropping: Yes
• Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
• Picture Overlay: Logo picture cab be overlaid on video with 128 × 128 24bit bmp format
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Sub-Stream
  • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
  • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
• Max. Resolution: 1920 × 1080
• Main Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 ×720)
  • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720)
• Third Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
  • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Simultaneous Live View: Up to 20 channels
• User/Host
  • Up to 32 users
  • 3 levels: Administrator, Operator and User
• Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web Browser: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0+

Interface

• Communication Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port, 1 RS-485 interface
• Alarm: 1 alarm input, 1 alarm output (supports max. 24 VDC, 1 A or 110 VAC, 500mA)
• Video Output: 1Vp-p composite output (75 Ω/BNC)
• On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB
  *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
• Reset Button: support
• SVC: H.264 and H.265 support

Approval

• EMC
  • FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B）
  • CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013）
  • RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015
  • IC: IC-VoC(ICES-003 Issue 7:2020)
  • KC: KN 301489-1,KN 301489-17,RRA NOTICE 2017-14(2017.12.05),RRA NOTICE 2017-19(2017.12.28)
• Safety
  • UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014
  • CB: IEC 60950-1
  • BIS: IS 13252(Part 1)2010+A1:2013+A2:2015
  • LOA: SANS IEC60950-1
• Chemistry: CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)

Compression Standard

• H.264+: Main stream support
• H.265+: Main stream support
• H.264 Type: Baseline Profile/Main Profile/High Profile
• Video Compression
  • Main stream: H.265/H.264
  • Sub stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• H.265 Type: Main Profile
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Video Bit Rate: 32 Kbps to 16 Mbps
• Audio Bit Rate: 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)

Smart Feature-Set

• Face Detection: Support
• Exception Detection: Audio exception detection
• Behavior Analysis: Line crossing detection, intrusion detection, region entrance detection, region exit detection, unattended baggage detection, object removal detection
• Region Of Interest: Support 4 fixed regions for each stream, and dynamic face tracking

General

• Power Supply: 12 VDC ±20%, PoE (802.3af, class 3) Terminal block for DC input
• Weight
  • Camera: Approx. 2.5 kg (5.51 lb.)
  • With package: approx. 3.46 kg (7.63 lb.)
• Power Consumption: 12 VDC, 0.8 A, max. 10 W
  PoE (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 12.5 W
• Heater: yes

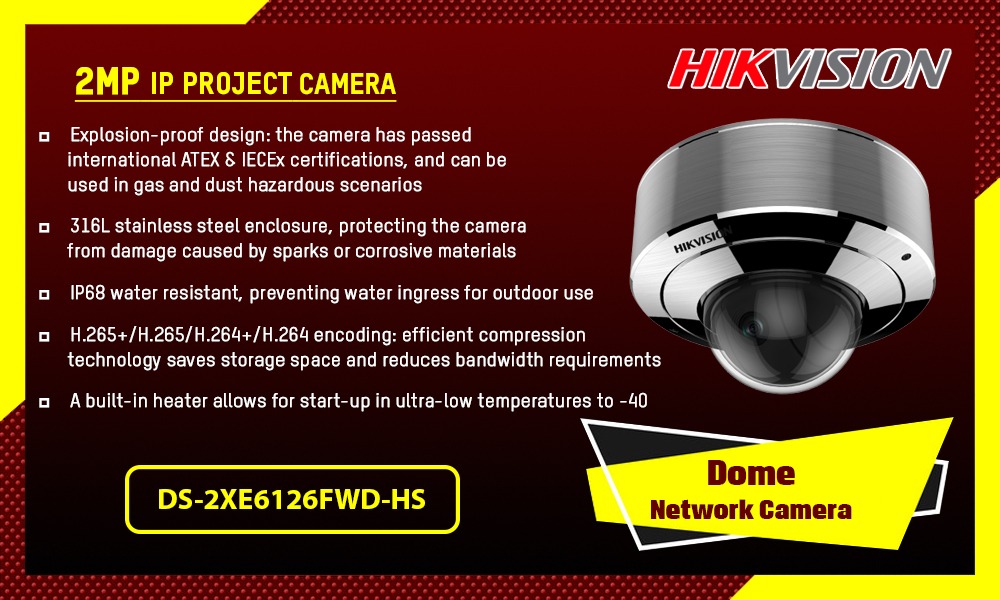

• Explosion-Proof Certificate
  • ATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68
  • IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68
    • For explosive gas atmospheres, the maximum surface temperature is 85°C;
    • For flammable dust atmospheres, the maximum surface temperature is 80°C;
    • IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
    • For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
