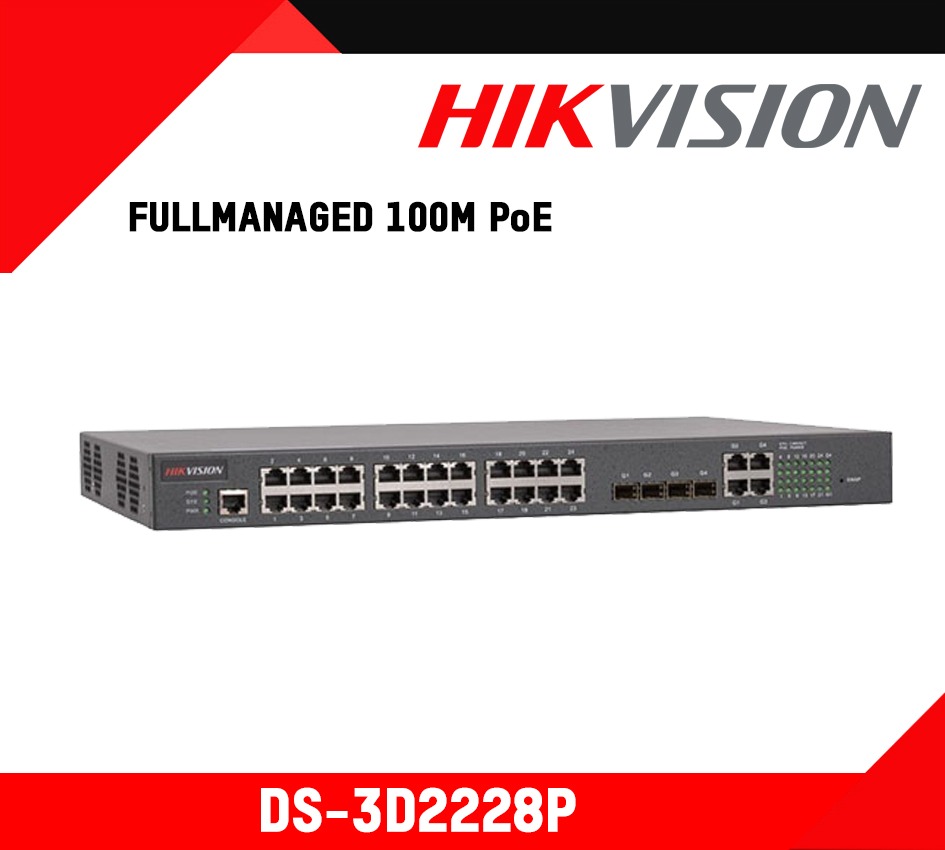

Installation Guide : DS-3D2228P
Specification
-
General
- Operating Temperature: 0°C ~55 °C (32 °F ~ 131 °F)
- Power Source
- 110-240VAC (self-adaptive), 47-63Hz, 1A/230V
- PoE/PoE+ power supply
- Dimension
- 442mm×315mm×44mm (17.40”×12.40”×1.73”)
- Operating Humidity: 0-90% (no condensation)
- Power Consumption: Max. 400W (including PoE power supply), support 802.3af power supply on 24 ports or 802.3at power supply on 12 ports
-
Performance
- Max. Forwarding Rate: 9.6Mpps
- Flow Control: Backpressure is adopted for half-duplex, while IEEE802.3x is adopted for full-duplex.
- Switching Bandwidth: 32Gbps
- Backplane Bandwidth: 64Gbps
-
PoE
- PoE Port
- 24 100M Ethernet Ports
- 4 1000M Ethernet Ports
- 4 1000M SFP Optical Multiplex Ports
- 1 Console port
-
Accessories
- SFP Modules (Optional)
- HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km
HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km
- HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km
-
Network
- QoS: Support
- QinQ: Support
- Multicast: IGMP Snooping
- Management: SNMP, Telnet, RMON, CLI, support multiple SNMP network management software
- LED Indicator: Power indicator, system indicator, connection/data forwarding indicator, 10/100M indicator
