Description

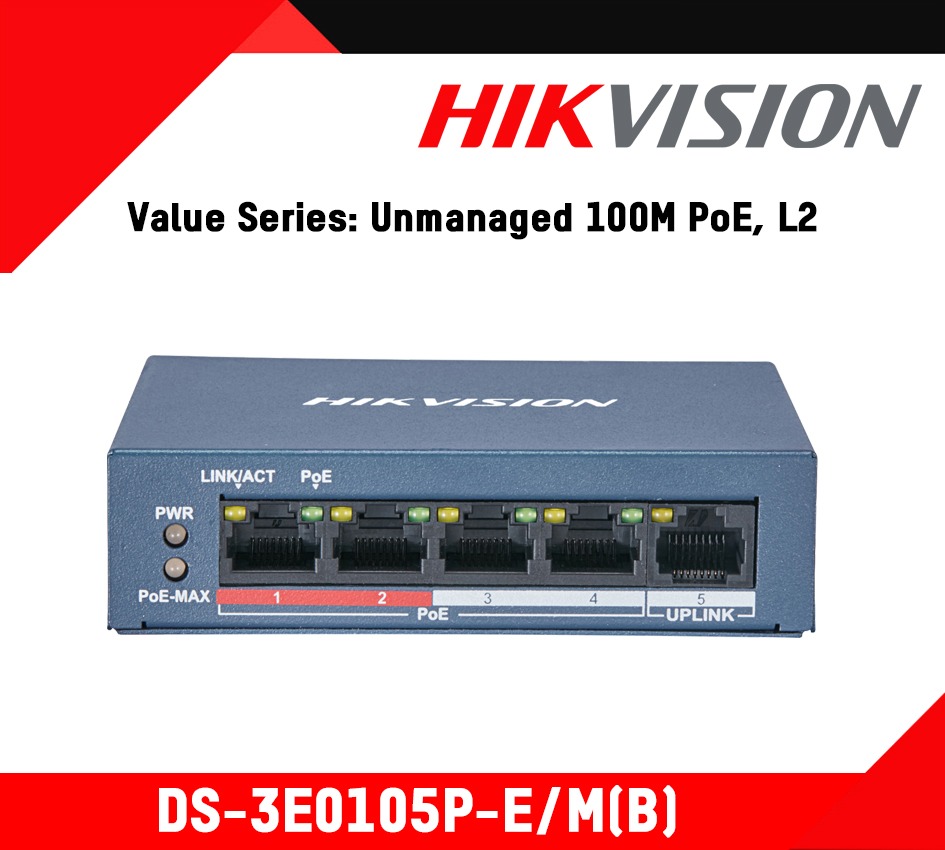

Datasheet: DS-3E0105P-E/M(B)
Quick Start Guide: DS-3E0105P-E/M(B)
PoE Power Supply
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin: Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
- PoE Port: Ports 1 to 4
- Max. Port Power: 30 W
- PoE Power Pudget: 35 W
- Max. Power Consumption: 38 W
Network Parameters
- Port Number: 4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
- Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Forwarding Mode: Store-and-forward switching
- Working Mode: Standard mode (default); Extend mode
- High Priority Ports: Ports 1 to 2
- Ports For Long-Distance Transmission: Ports 1 to 4
- MAC Address Table: 1 K
- Switching Capacity: 1 Gbps
- Packet Forwarding Rate: 0.744 Mpps
- Internal Cache: 448 Kbits
General
- Shell: Metal material, fan-free design
- Gross Weight: 0.48 kg (1.06 lb)
- Net Weight: 0.2 kg (0.4 lb)
- Dimension (L × H × D): 105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
- Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Storage Humidity: 5% to 95% (no condensation)
- Power Supply: 48 VDC, 0.8 A
- Power Consumption In Idle: 3 W
Approval
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
- Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
