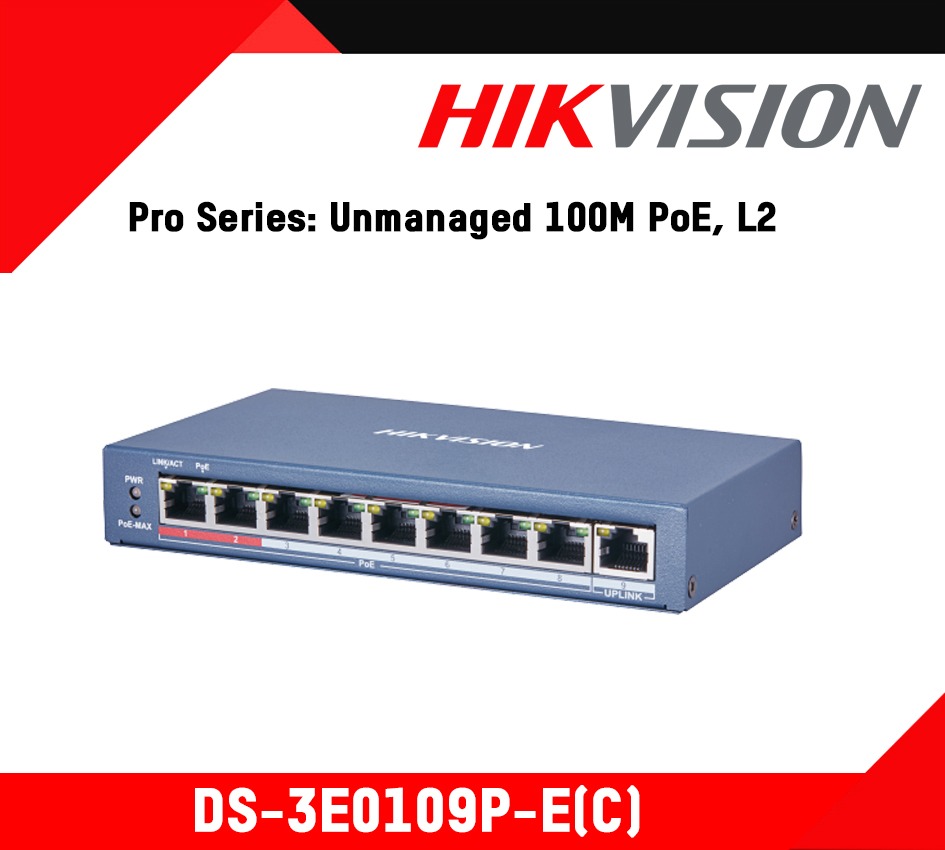

DS-3E0109P-E(C) - Hikvision Pro Series: Unmanaged 100M PoE, L2 Switch Colombo CCTV Srilanka
DS-3E0109P-E(C)
Availability: not in Stock

DS-3E0109P-E(C)

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • 8 Port Fast Ethernet Unmanaged POE Switch
  • Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
  • Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
  • 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
  • 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
  • Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Categories:

Description


Datasheet: DS-3E0109P-E(C)

Quick Start Guide: DS-3E0109P-E(C)

PoE Power Supply
  • PoE Standard: IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin: Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
  • PoE Port: Ports 1 to 8
  • Max. Port Power: 30 W
  • PoE Power Pudget: 115 W
  • Max. Power Consumption: 120 W
Network Parameters
  • Port Number: 8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
  • Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
  • Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding Mode: Store-and-forward switching
  • Working Mode: Standard mode (default); Extend mode
  • High Priority Ports: Ports 1 to 2
  • Ports For Long-Distance Transmission: Ports 1 to 8
  • MAC Address Table: 2 K
  • Switching Capacity: 1.8 Gbps
  • Packet Forwarding Rate: 1.339 Mpps
  • Internal Cache: 1 Mbits
General
  • Shell: Metal material, fan-free design
  • Gross Weight: 1.01 kg (2.23 lb)
  • Net Weight: 0.35 kg (0.77 lb)
  • Dimension (L × H × D): 170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)
  • Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Storage Humidity: 5% to 95% (no condensation)
  • Power Supply: 48 VDC, 2.5 A
  • Power Consumption In Idle: 5 W
Approval
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
