Description

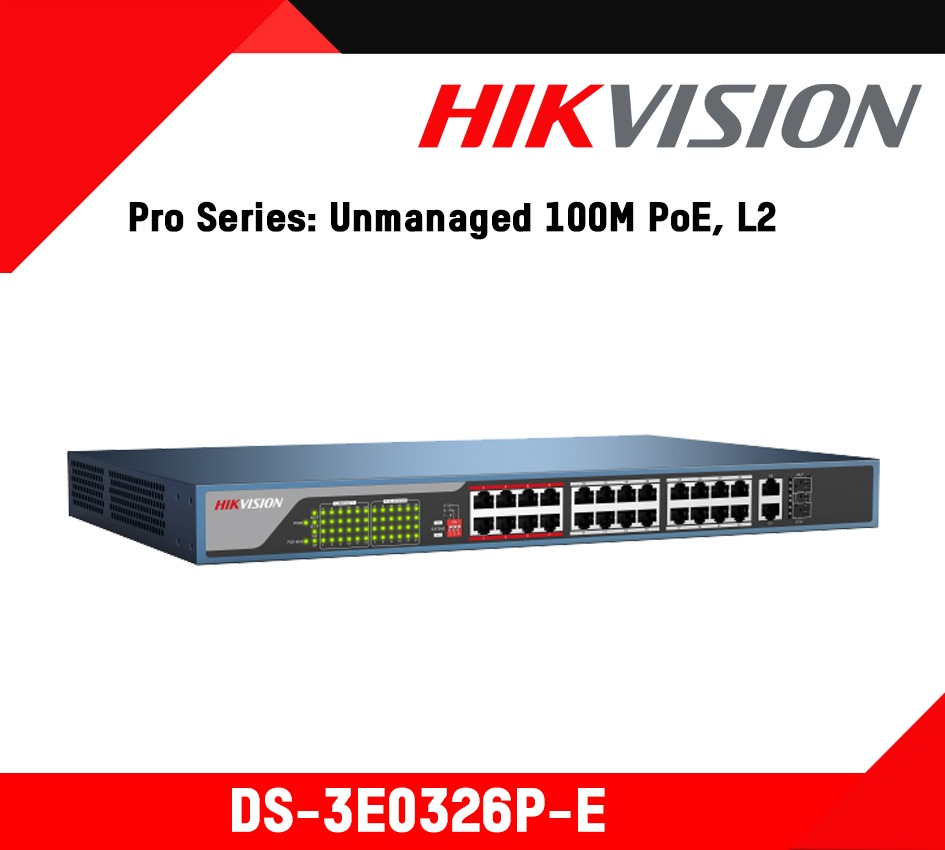

DS-3E0326P-E Product Description
| Model | DS-3E0326P-E |
|---|---|
| Network Ports: | 26 |
| PoE Port: | 24, 10/100Mbps RJ45 ports |
| Uplink Port: | 2, 1000M Combo Port |
| Network Protocol: | IEEE802.3,802.3u,802.3x, 802.3af, 802.3at |
| Switching Capacity: | 8.8Gbps |
| Max. Forwarding Rate: | 6.55Mpps |
| High Priority Ports: | Ports 1-8 |
| Forwarding Mode: | Store-and-forward |
| MAC Address Table: | 4k |
| Flow Control: | IEEE802.3x full duplex |
| PoE Standard: | IEEE802.3af, IEEE802.3at |
| PoE Power Budget: | 370W |
| Working Mode: | Extend On:250m,10M,CAT 5e Extend Off:100m |
| Power Supply: | 100-240V AC, 50/60Hz |
| Power Consumption: | ≤440W |
| Surge Protection: | 4KV |
| Working Temperature: | Temperature: 0℃-40℃ |
| Working Humidity: | Humidity: 10%-90% , non-condensing |
| Storage Temperature: | Temperature: -40℃-70℃ |
| Storage Humidity: | Humidity: 5%-90% , non-condensing |
| Weight: | 4.29kg |
| Dimension: | 440mm*285mm*43mm |
| SFP modules (Optional): | HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km |
