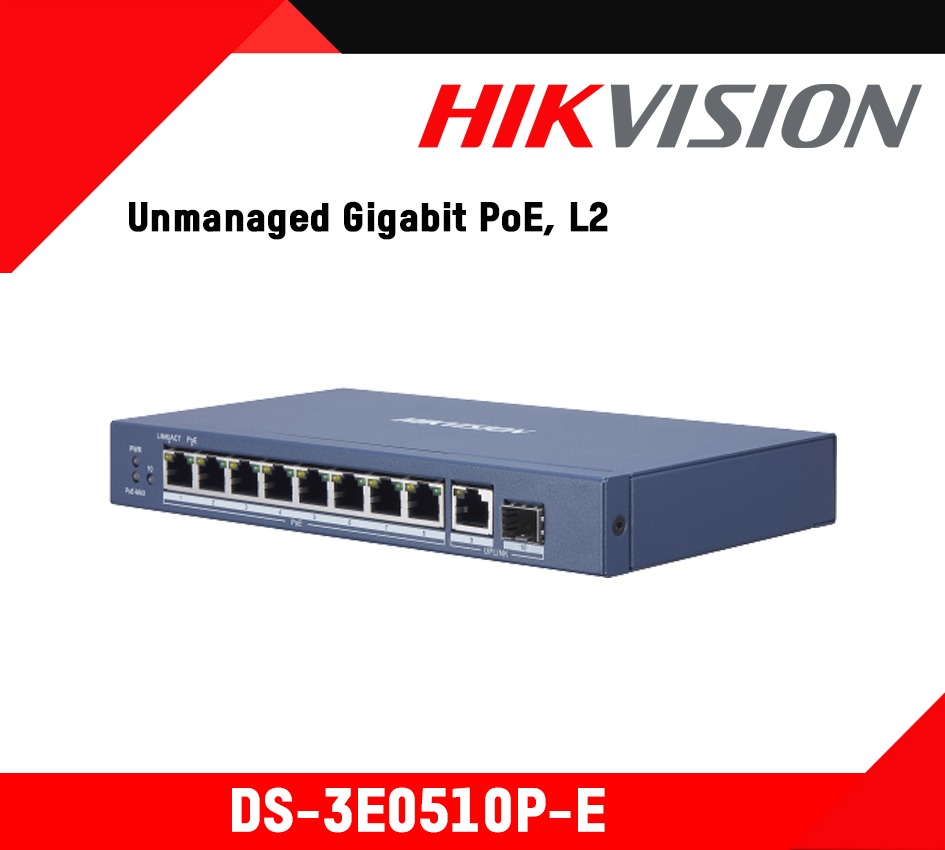

Description
Datasheet: DS-3E0510P-E
Quick Start Guide: DS-3E0510P-E
PoE Power Supply
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin: Support 4-core power supply, and Ethernet cable 1/2/3/6 provide power supply.
- PoE Port: Ports 1 to 8
- Max. Port Power: 30 W
- PoE Power Pudget: 110 W
- Max. Power Consumption: 120 W
Network Parameters
- Port Number: 8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit SFP fiber optical port
- Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- Forwarding Mode: Store-and-forward switching
- MAC Address Table: 4 K
- Switching Capacity: 20 Gbps
- Packet Forwarding Rate: 14.88 Mpps
- Internal Cache: 1.5 Mbits
General
- Shell: Metal material, fan-free design
- Gross Weight: 1.4 kg (3.09 lb)
- Net Weight: 0.6 kg (1.32 lb)
- Dimension (L × H × D): 217.6 mm × 27.8 mm × 108.55 mm (8.6” × 1.1” × 4.3”)
- Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Storage Humidity: 5% to 95% (no condensation)
- Power Supply: 48 VDC, 2.5 A
- Power Consumption In Idle: 10 W
