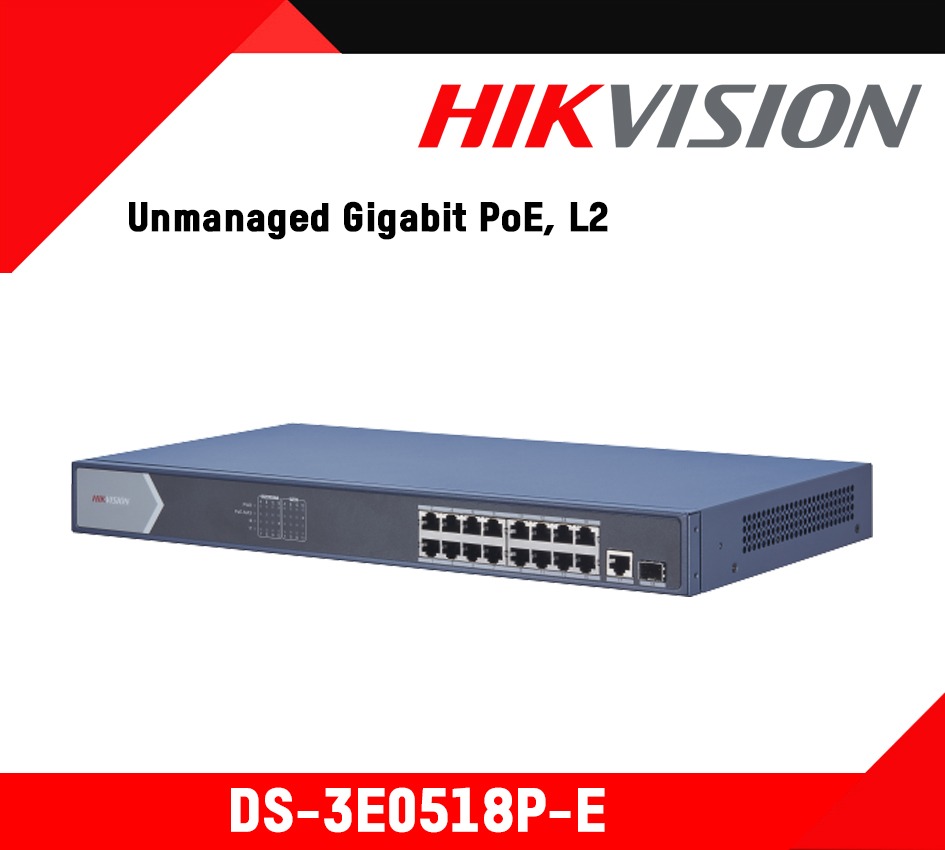

Description
Datasheet: DS-3E0518P-E
User Manual: DS-3E0518P-E
PoE Power Supply
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin: Support 4-core power supply, and Ethernet cable 1/2/3/6 provide power supply.
- PoE Port: Ports 1 to 16
- Max. Port Power: 30 W
- PoE Power Pudget: 230 W
- Max. Power Consumption: 250 W
Network Parameters
- Port Number: 16 × Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit SFP fiber optical port
- Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- Forwarding Mode: Store-and-forward switching
- MAC Address Table: 8 K
- Switching Capacity: 36 Gbps
- Packet Forwarding Rate: 26.784 Mpps
- Internal Cache: 4.1 Mbits
General
- Shell: Metal material
- Gross Weight: 3.53 kg (7.78 lb)
- Net Weight: 2.67 kg (5.89 lb)
- Dimension (L × H × D): 440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
- Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Storage Humidity: 5% to 95% (no condensation)
- Power Supply: 100 to 240 VAC, 50/60 Hz, Max. 4 A
- Power Consumption In Idle: 20 W
