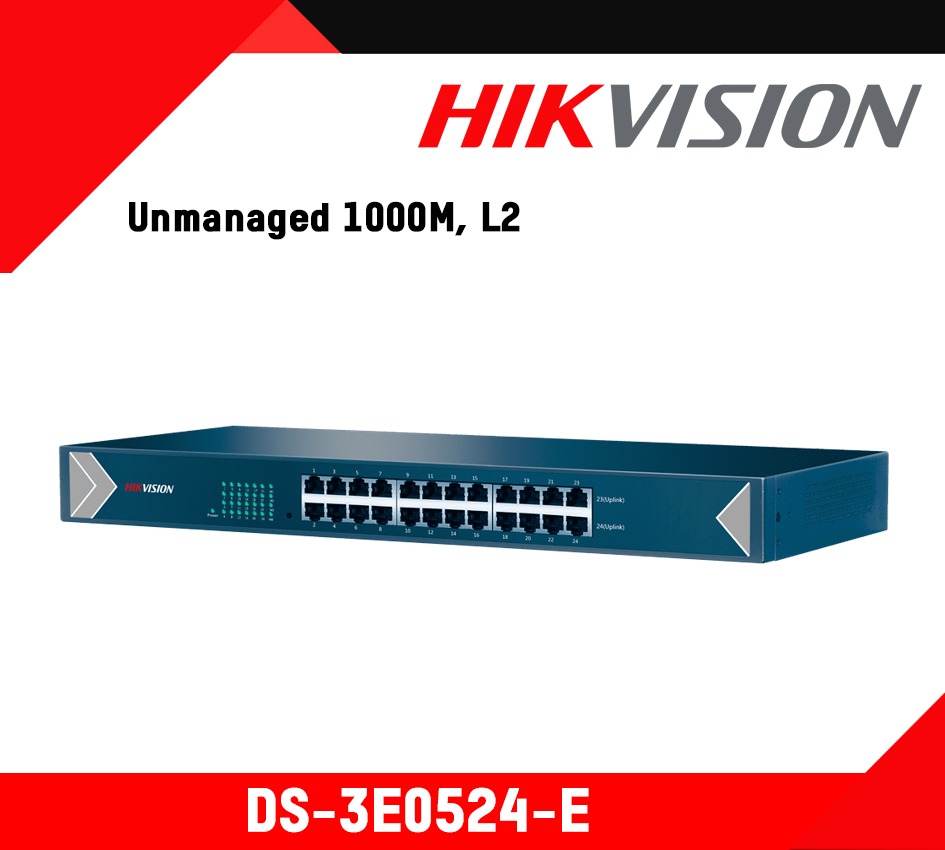

DS-3E0524-E Hikvision Unmanaged 1000M Switch Colombocctv.com Srilanka
DS-3E0524-E
Availability: not in Stock

DS-3E0524-E

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • Compliant with IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab Ethernet standards
  • 24 10/100/1000Mbps auto-negotiation RJ45 ports
  • Auto MDI/MDIX
  • 8K MAC address and MAC address learning
  • IEEE 802.3x full duplex flow control, and Backpressure half duplex flow control
  • 48 Gbps backplane bandwidth for non-blocking line-speed forwarding
  • LED indicators for indicating working status and troubleshooting
  • Built-in power supply system with 4000V common mode and 4000V differentiate mode lightning immunity
  • 1U standard height suitable for desktop and rack installation
  • Ports all with 4000V common mode lightning immunity
  • IP camera connection
Categories:

Description


Datasheet: DS-3E0524-E

Model DS-3E0524-E
Device Type Switch – 24 ports – unmanaged
Enclosure Type Desktop
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000
Performance Bandwidth: 48 Gbps
MAC Address Table Size 8K entries
Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, MAC address learning, MAC address aging, Loop Guard
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Status Indicators Power, link/activity
Interfaces 22 x 1000Base-T RJ-45
2 x 1000Base-T RJ-45 uplink
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 18 Watt
Width 17.3 in
Depth 7 in
Height 1.7 in
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 – 90% (non-condensing)
