Description

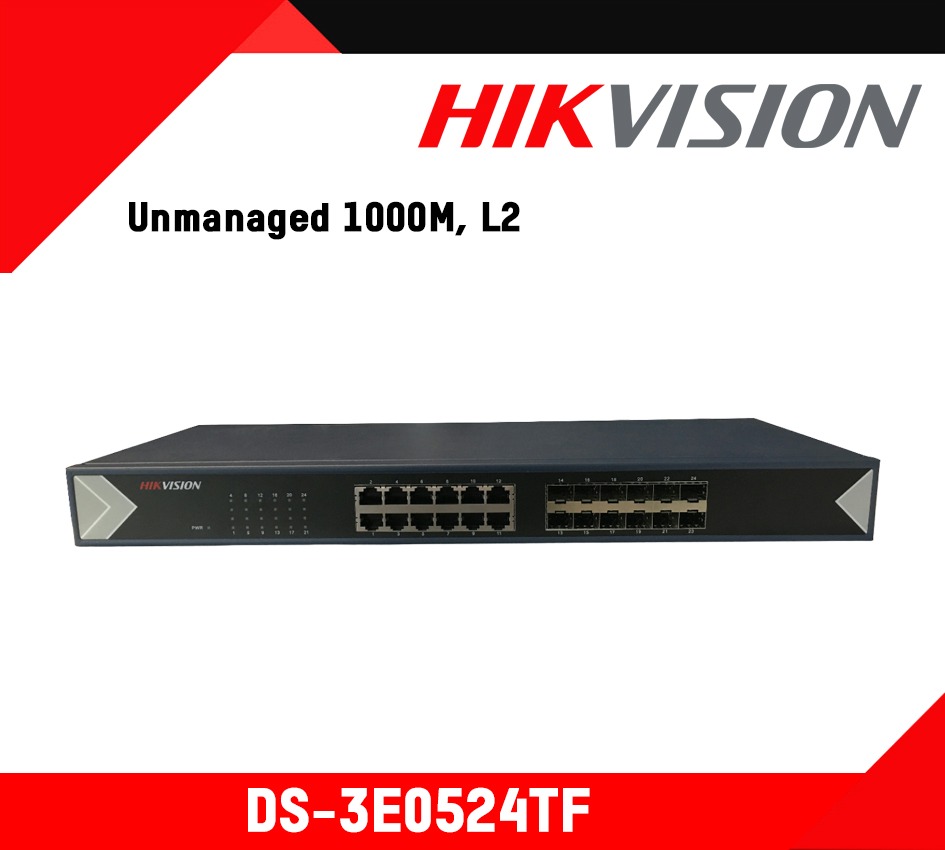

Datasheet: DS-3E0524TF
Quick Start Guide: DS-3E0524TF
General
- Operating Temperature: -5 ˚C to +50 ˚C (+23 ˚F to +122 ˚F)
- Storage Temperature: -40 ˚C to +85 ˚C (-40 ˚F to +185 ˚F)
- Power Supply: 220 VAC
- Weight: 2.5 kg
- Storage Humidity: 5% to 95% (no condensation)
- Shell: Metal material
- Dimension: 440 × 44.5 × 186.5 mm,(17.3 × 1.8 × 7.3 inch)
- Operating Humidity: 5% to 95% (no condensation)
- Power Consumption: ≤ 30 W
Performance
- MAC Address Table: 16 K
PoE
- Switching Bandwidth: 48 Gbps
Port
- Priority Queue: 8
- Port Type: Electrical ports: RJ45, Full/half duplex, MDI/MDI-X self-adptive,Fiber optical port: SFP packaging
- Port Amount: 12 Gigabit Ethernet electrical ports and 12 Gigabit SFP fiber optical port
Safety And Reliability
- Surge Immunity(Surge): Power port:line-ground ±2 KV,line-line 1 KV,Network port:line-ground ±2 KV
- ElectroSTatic Discharge (ESD): Contact discharge:±7 KV,Air discharge:±9 KV
- Electrical Fast Transient(EFT): Power port:±2 KV,Network port:±1 KV
Network
- Processing Type: Store-and-forward switching
- Max. Forwarding Rate: 35.7 Mpps
- Network Standard: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
- Internal Cache: 12 Mbit
