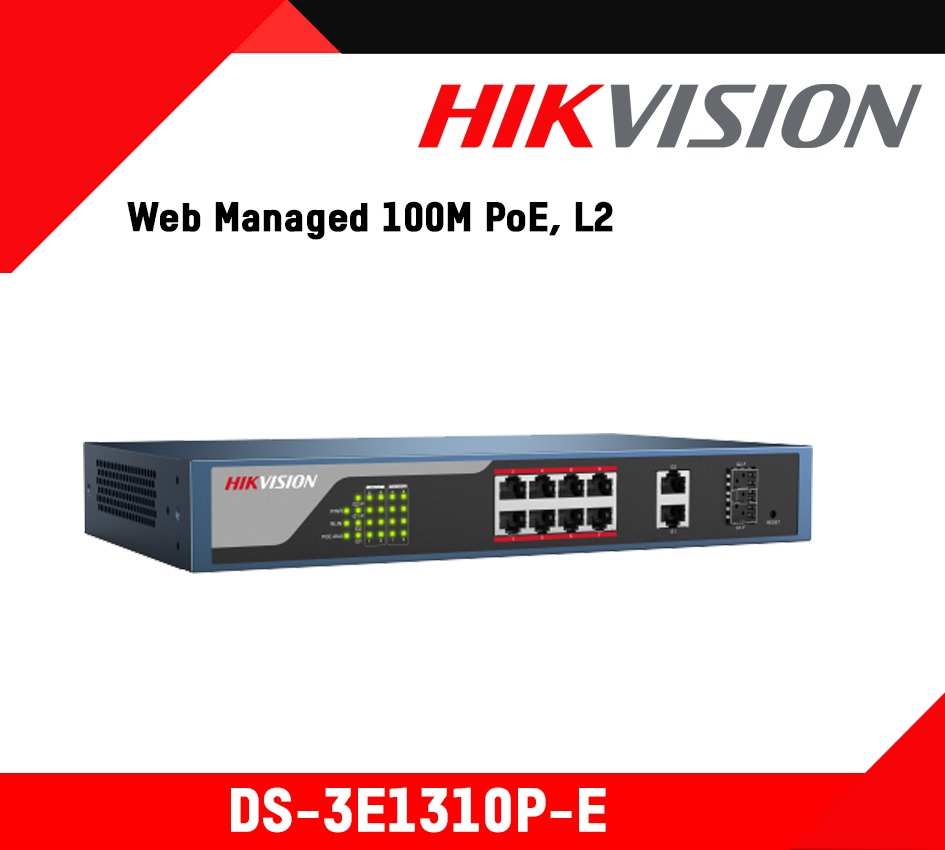

DS-3E1310P-E
DS-3E1310P-E
Availability: not in Stock

DS-3E1310P-E

logo-2

Key Features

  • Layer 2 network switch designed for video data transmission
  • 8 x 10/100 Mbps PoE ports and 2 x 10/100/1000 Mbps combo uplink ports
  • Web management: supports intelligent management such as VLAN, link aggregation, QoS, loop guard via STP, SNMP, etc. to reduce project difficulty and time, save costs and protect customer investment
  • IEEE 802.3 af & at high POE power supply
  • Maximum 250 m long distance PoE transmission
  • VIP port transmission priority
  • Safe and reliable using 4 KV high surge protection;

Description

DS-3E1310P-E Product Description

General

  • Operating Temperature: 0 ºC to +40 ºC (+32 ºF to +104 ºF)
  • Storage Temperature: -40 ºC to +70 ºC (-40 ºF to +158 ºF)
  • Power Supply: 100 to 240 VAC, 50/60Hz
  • Operating Humidity: 10% to 90% (Relative Humidity, without condensation)
  • Power Consumption: ≤150W

Performance

  • Store-And-Forward: Support
  • MAC Address Table: 4K
  • MAC Address Learning: Automatic learning/Aging
  • Backplane Bandwidth: 5.4 Gbps

PoE

  • Switch Max. Power: 123W
  • Port Max. Power: 30W
  • PoE Standard: IEEE 802.3af, IEEE802.3at
  • PoE Port: Port 1 to 8
  • PoE Cable Core: Supports 8-core power supply and simultaneous power supply via the 1236 and 4578 line order.
  • Port Max. Power: 30W
  • Switch Max. Power: 123W

Port

  • High-Priority Port: Port 1 to 8
  • 1000 Mbps SFP: 2 (multiplex)
  • 10/100/1000 Mbps RJ45: 2
  • 10/100 Mbps RJ45: 8

Standard

  • Network Standard: IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3af, IEEE802.3at, IEEE 802.3x, IEEE802.3z

Network

  • Network Media
    • Ethernet: UTP/STP of CAT3 or above
    • Fast Ethernet: UTP/STP of CAT5 or above
    • Gigabit Ethernet: Recommended UTP/STP of CAT5e or CAT6
    • 1000 Base-SX: MMF (Multi-Mode Fiber)
    • 1000 Base-LX: MMF (Multi-Mode Fiber) or SMF (Single Mode Fiber)
  • Lightning-Proof Ranking
    • Port: 4 KV
    • Power supply: 6KV
  • Data Transfer Rate
    • Ethernet: 10 Mbps (half-duplex)/20 Mbps (full-duplex)
    • Fast Ethernet: 100 Mbps (half-duplex)/200 Mbps (full-duplex)
    • Gigabit Ethernet: 2000 Mbps (full-duplex)

Environment

  • Storage Humidity: 5% to 90% (Relative Humidity, without condensation)
