Description

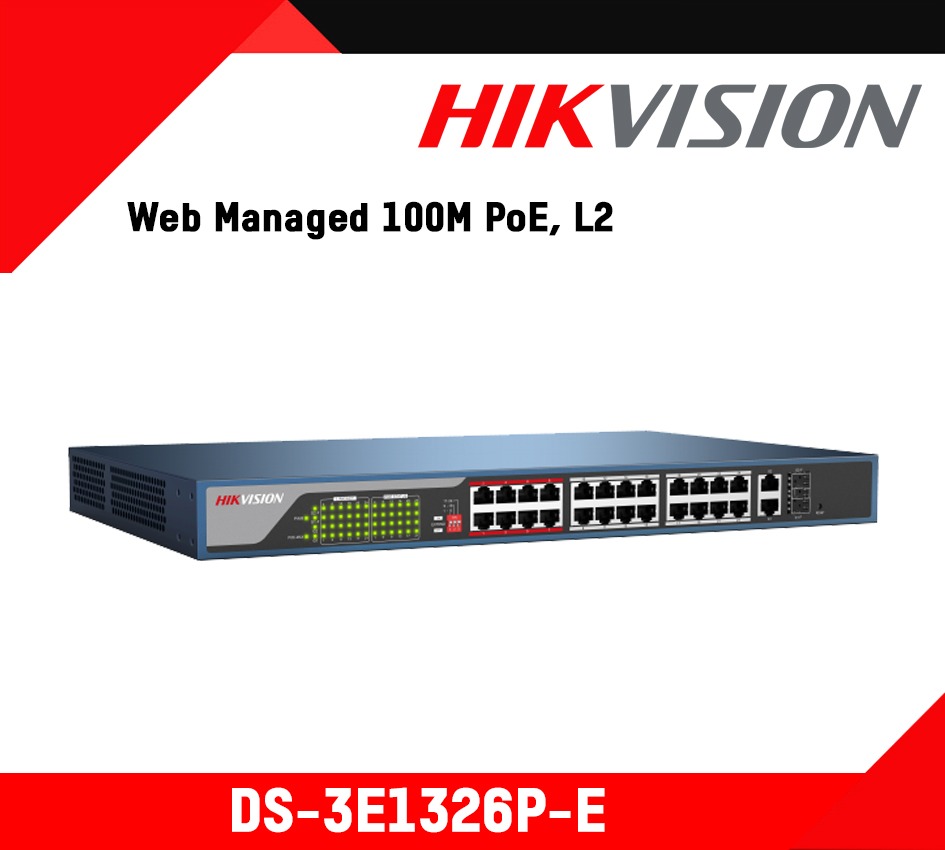

Data sheet: DS-3E1326P-E
User Manual: DS-3E1326P-E
| Ports | ||
|---|---|---|
| 10/100M RJ45: | 24 | |
| 10/100/1000M RJ45: | 2 | |
| 1000M SFP: | 2 (multiplex) | |
| Port of high priority: | Port 1 to 8 | |
| Performance | ||
| Store-and-forward: | Support | |
| MAC address table: | 4K | |
| MAC address learning: | Automatic learning/Aging | |
| Backplane bandwidth: | 8.8 Gbps | |
| Power Over Ethernet | ||
| PoE Standard: | IEEE 802.3af, IEEE802.3at | |
| PoE cable core: | Supports 8-core power supply and simultaneous power supply via the 1236 and 4578 line order. | |
| PoE port: | Port 1 to 24 | |
| Port max. power: | 30W | |
| Switch max. power: | 370W | |
| General | ||
| Power Supply: | 100 to 240 VAC, 50/60Hz | |
| Working Temperature: | 0 oC to +40 oC (+32 oF to +104 oF) | |
| Working Humidity: | 10% to 90% (Relative humidity, without condensation) | |
| Storage Temperature: | -40 oC to +70 oC (-40 oF to +158 oF) | |
| Storage Humidity: | 5% to 90% (Relative humidity, without condensation) | |
| Lighting Protection Grade | ||
| For port: | 4 KV | |
| For power supply: | 6 KV | |
| Data Transfer Rate | ||
| Ethernet: | 10 Mbps (half-duplex)/20 Mbps (full-duplex) | |
| Fast Ethernet: | 100 Mbps (half-duplex)/200 Mbps (full-duplex) | |
| Gigabit Ethernet: | 2000 Mbps (full-duplex) | |
| Network Media | ||
| Ethernet: | UTP/STP of CAT3 or above | |
| Fast Ethernet: | UTP/STP of CAT5 or above | |
| Gigabit Ethernet: | Recommended UTP/STP of CAT5e or CAT6 | |
| 1000 Base-SX: | MMF (Multi-Mode Fiber) | |
| 1000 Base-LX: | MMF (Multi-Mode Fiber) or SMF (Single Mode Fiber) | |
| Parameters | ||
| Network Standard: | IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3af, IEEE802.3at, IEEE 802.3x, IEEE802.3z | |
| Port: | When the EXTEND mode is enabled, the maximum data transmission (for 10 Mbps full/half duplex communication only) and power supply distance can be extended to 250 meters via CAT5e twisted pair or above | |
| PoE: | IEEE 802.3at/IEEE 802.3af Enable/Disable PoE PoE over-temperature protection Display power supply status and output power of the PoE port Dynamic power supply of the PoE port. Power supply priority (Port 1 > Port 2 > … > Port 16… > Port 24) |
|
| Security Feature: | MAC address binding | |
| VLAN: | One-key enable VLAN Port VLAN (Max. 18/26 groups can be configured) IEEE 802.1Q VLAN (Max. 31 groups can be configured) |
|
| Port Trunk: | 3 groups: Port 1, 2, 3 and 4 Port 5, 6, 7 and 8 Port G1/G1-F and G2/G2-F |
|
| STP (Spanning Tree): | IEEE 802.1d Spanning Tree Protocol IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) |
|
| Multicast: | IGMP Snooping and IGMP v1/v2 | |
| Mirroring: | N: 1 port mirroring | |
| QoS: | FIFO (First-in First-out) SP (Strict Priority) WP (Weighted Priority) |
|
| MAC Address Management: | MAC address aging and static MAC address configuration | |
| Loading and Upgrade: | HTTP upgrade Import/Export configuration file |
|
| Management and Maintenance: | SNMP v1/v2 WEB management |
|
