Description

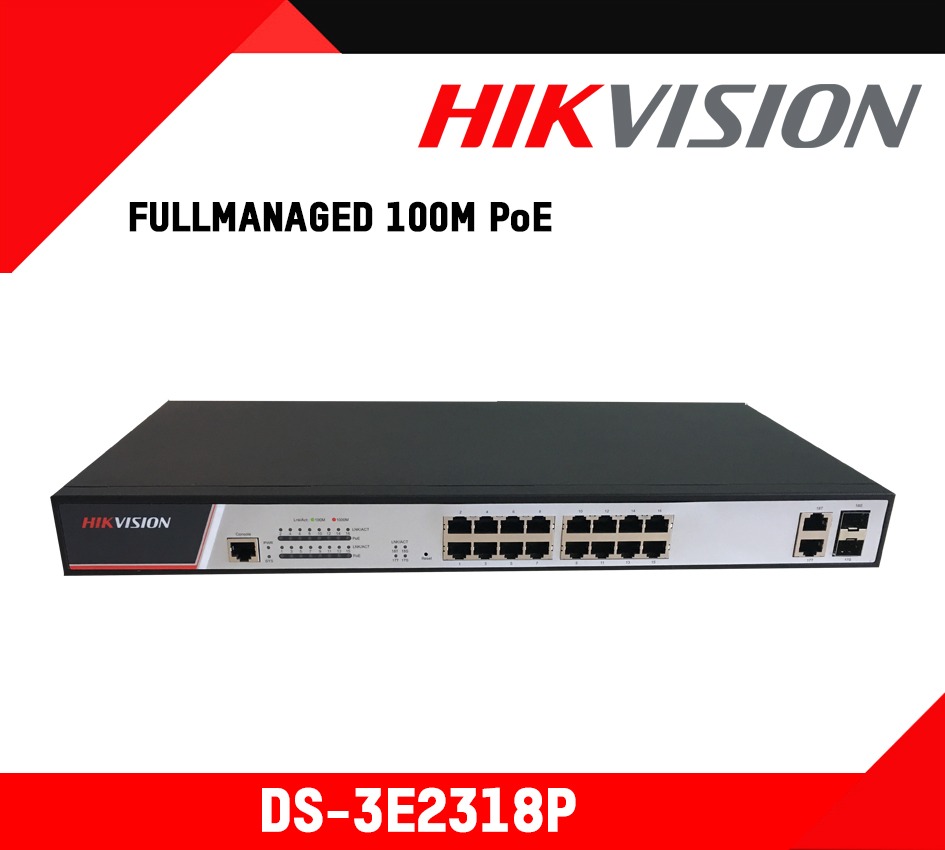

Datasheet : DS-3E2318P
User Manual : DS-3E2318P
General | |
---|---|
Operating Temperature | 0℃-50℃ |
Storage Temperature | -20℃-70℃ |
Power Supply | AC:100V-240V,50Hz±10% |
Storage Humidity | 5%-95% |
Dimension | 440×232×44 |
Operating Humidity | 10%-90% |
Power Consumption | 330W (POE 300W) <15W |
Performance | |
Max. Forwarding Rate | 8.4Mpps |
Backplane Bandwidth | 21.2Gbps |
PoE | |
POE/POE+ | Support |
PoE Port | 16 100M Base-T ports + 2 gigabit combo ports |
Network | |
Reliability | Static/LACP link aggregation, EAPS and ERPS |
QoS | Flow classification based on L2~4 protocols (S2108POE does not support the function.),CAR flow limit,802.1P/DSCP priority re-labeling (S2108POE does not support the function.),SP, WRR, and “SP+WRR”,Congestion avoidance mechanisms like Tail-Drop and WRED,Flow monitoring and flow shaping |
Multicast | IGMP v1/v2/v3, IGMP snooping, IGMP Fast Leave, Multicast group strategy and quantity limitation, Multicast flow copying over VLANs (S2108POE does not support the function.) |
Management | Console, Telnet, SSH2.0, Web; SNMP v1/v2/v3; TFTP, RMON |
