Description
Datasheet : DS-3T0306P
User Manual : DS-3T0306P

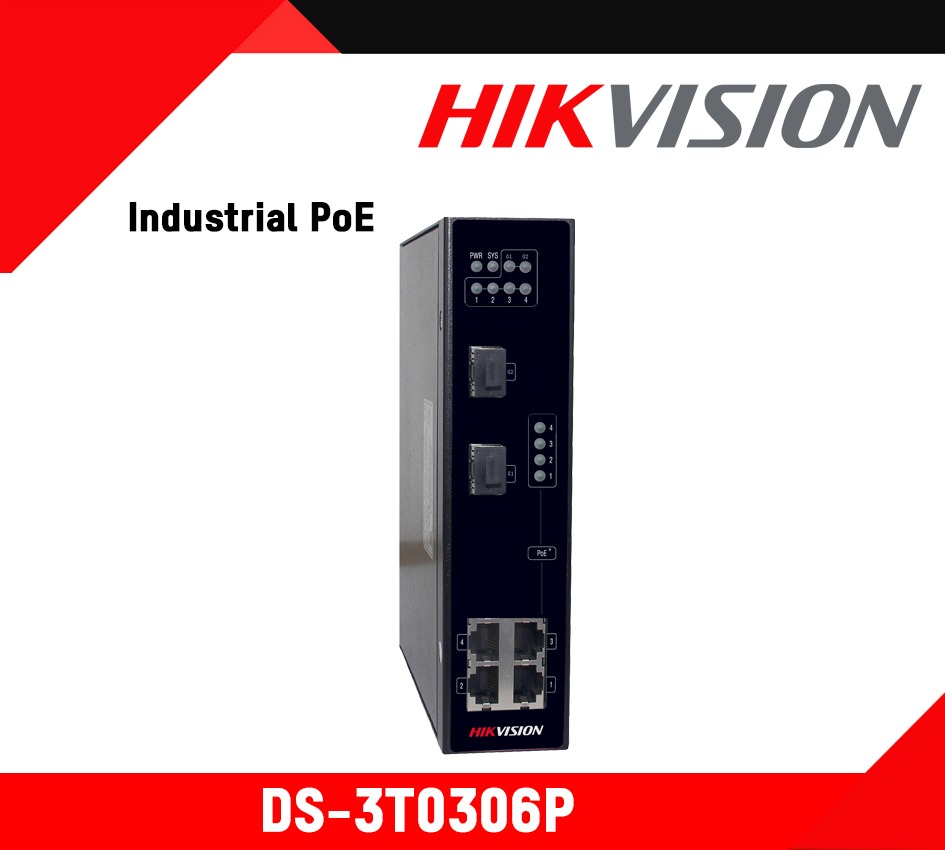

| Model | DS-3T0306P |
|---|---|
| Backplane | 8.8Gbps |
| Forwarding Rate | 3.6Mpps |
| MAC | 4K |
| Ports | 4 100M Base-T ports+2 1000Base-X ports |
| Dimensions(W×D×H)(Mm) | 155x130x42 |
| Consumption | <9W |
| POE/POE+ | Support 802.3at/af |
| Install Method | DIN rail |
| Power Supply | DC：44～57VDC ( Power supply unit is not included ) |
| Environment | Operating temperature/humidity: -40℃-75℃，5%-95% non-condensing Storage temperature/humidity: -40℃-85℃；5%-95% non-condensing |
| Protection Grade | IP40 |
| EMI | FCC 47 CFR Part 15 Class A EN55022 Class A |
| EMS | IEC (EN )61000‐4‐2, Class 4 IEC (EN )61000‐4‐4, Class 2 IEC (EN )61000‐4‐5, Class 2 IEC (EN )61000‐4‐11, Class 4 IEC (EN )61000‐4‐12, Class 4 |
| PoE Power | Max. 30 W for one port |
