DS-3WF03C-D
Vous êts ici:
ColomboCCTV Home Page
/
/
/
DS-3WF03C-D

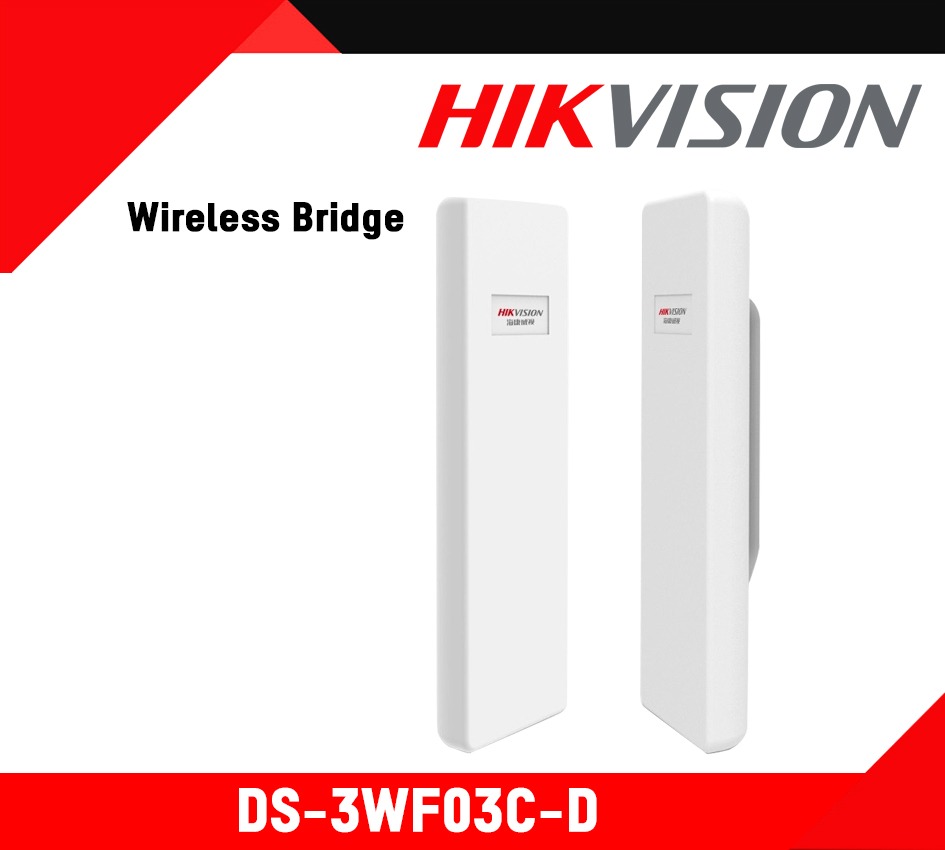

DS-3WF03C-D Hikvision Wireless Bridge Colombocctv.com Srilanka
DS-3WF03C-D
Availability: not in Stock

DS-3WF03C-D

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • High performance 802.11n 2×2 MIMO chip
  • Longest transmission range: 3Km, and effective transmission throughput: 40Mbps
  • Integrated XTrans technology, including TDMA, intelligent rate control, Auto ACK Time-out adjust
  • TDMA solves the problems of hidden-node problem in the 802.11 network, thus having better long-distance and PTMP performance
  • 5 operation mode: Access Point, Station, WDS Access Point, WDS Station, WDS Repeater
  • Point-to-point connection
  • Unique RF and antenna design enables long-range transmission
  • Wireless multimedia optimization technology guarantees video/audio transmission QoS
  • Web based working scenario selection makes the installation and setting much easier
  • Reliable PoE power supply, support 802.3af standard
  • Web-based configuration, easy to use
  • Waterproof housing and accessory kit protects
Categories:

Description

User Manual : DS-3WF03C-D

Model DS-3WF03C-D
Frequency range: 4920 MHz … 6100 MHz
Antenna type: 2Tx 2Rx MIMO
15 dBi Integrated
Standards:
  • IEEE 802.11a
  • IEEE 802.11n
LAN ports: 2  x 10/100 Mbps BASE-TX (Cat. 5, RJ-45)
Receiver sensitivity:
  • -96 dBm @ 6 Mbps
  • -74 dBm @ 65 Mbps
Operation modes: Station, Station WDS, Access Point, Access Point WDS, WDS Repeater
Transmitter power: 27 dBm
Power supply PoE:
Power supply: 24 V / 0.5 A – PoE (power adapter included)
Operation temp: -30 °C … 75 °C
Permissible relative humidity: 5 % … 95 %
Weight: 0.31 kg – Transmitter / Receiver
Dimensions: 270  x 88  x 41 mm – Transmitter / Receiver
Manufacturer / Brand: Hikvision
SAP Code: 301801030
Guarantee: 3 years
