Description

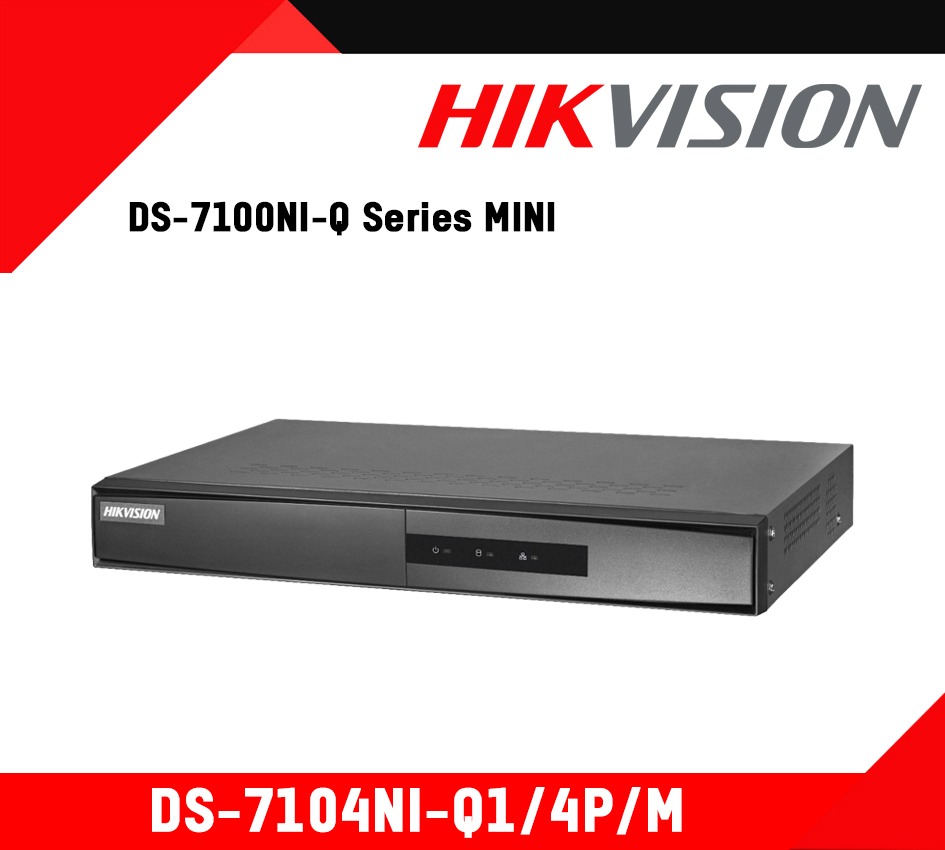

Datasheet: DS-7104NI-Q1/4P/M
User Manual: DS-7104NI-Q1/4P/M
Video And Audio
- IP Video Input: 4-ch, Up to 4 MP resolution
- Incoming Bandwidth: 40 Mbps
- Outgoing Bandwidth: 60 Mbps
- HDMI Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output Mode: HDMI/VGA simultaneous output
Decoding
- Decoding Format: H.265+/H.265/ H.264+/H.264
- Recording Resolution: 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous Playback: 4-ch
- Decoding Capability: 4-ch@1080p (25 fps), 2-ch@4 MP (25 fps)
- Stream Type: Video, Video & Audio
Network
- Remote Connection: 16
- Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
- Network Interface: 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
PoE
- Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power: ≤ 36 W
- Standard: IEEE 802.3 af/at
Auxiliary Interface
- SATA: 1 SATA interface
- Capacity: Up to 6TB capacity for each disk
- Alarm In/Out: N/A
- USB Interface: Rear panel: 2 × USB 2.0
General
- Power Supply: 48 VDC, 1 A
- Consumption: ≤ 10 W
- Working Temperature: -10 to +55º C (+14 to +131º F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″)
- Weight: ≤ 1 kg (2.2 lb)
Certification
- FCC: Part 15 Subpart B, ANSI C63.4-2014
- CE: EN50130-4, EN 61000-3-2,EN 61000-3-3
