Description

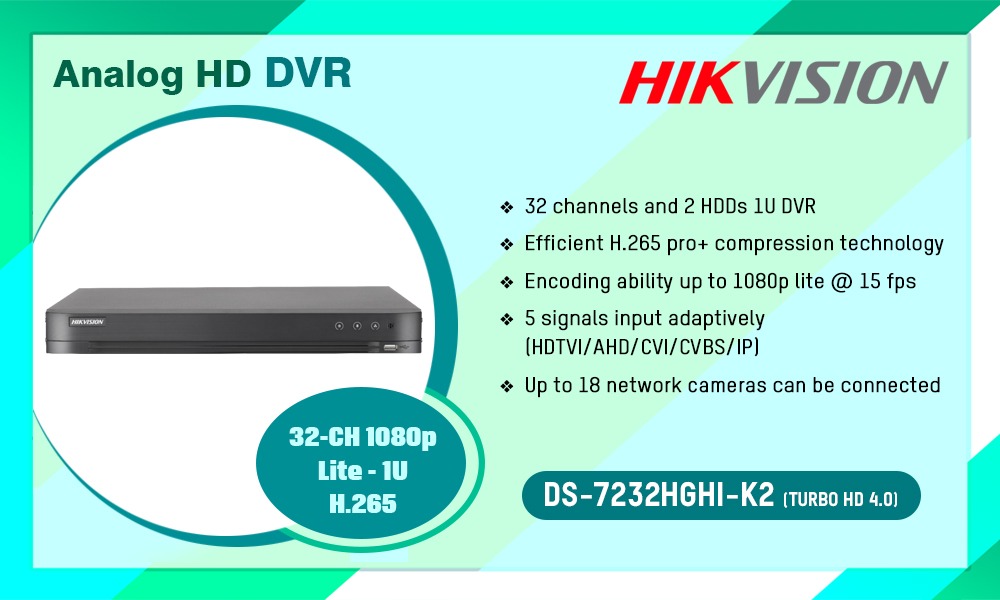

Datasheet: DS-7232HGHI-K2-(TURBO-HD-4)
User Manual: DS-7232HGHI-K2-(TURBO-HD-4)
Recording
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution: 1080p lite/720p/VGA/WD1/4CIF/CIF
- Frame Rate
- Main stream:
- For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
- For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
- For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
- Sub-stream:
- For 1080p and 720p stream access: CIF/QVGA@15fps
- For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
- Main stream:
- Video Bitrate: 32 Kbps to 4 Mbps
- Dual-Stream: Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711u
- Audio Bitrate: 64 Kbps
Video And Audio
- IP Video Input: 2-ch (up to 18-ch)
- Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Up to 5 MP resolution
- Analog Video Input: 32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection - HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
- AHD Input: 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
- CVBS Input: PAL/NTSC
- HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω)
- Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback: 16-ch
Network
- Remote Connection: 128
- Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
- SATA: 2 SATA interface
- Capacity: Up to 10 TB capacity for each disk
- USB Interface
- Front panel: 1 × USB 2.0
- Rear panel: 1 × USB 3.0
General
- Power Supply: 12 VDC, 3.2 A
- Consumption: ≤ 18 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
- Weight: ≤ 2.2 kg (4.9 lb)
