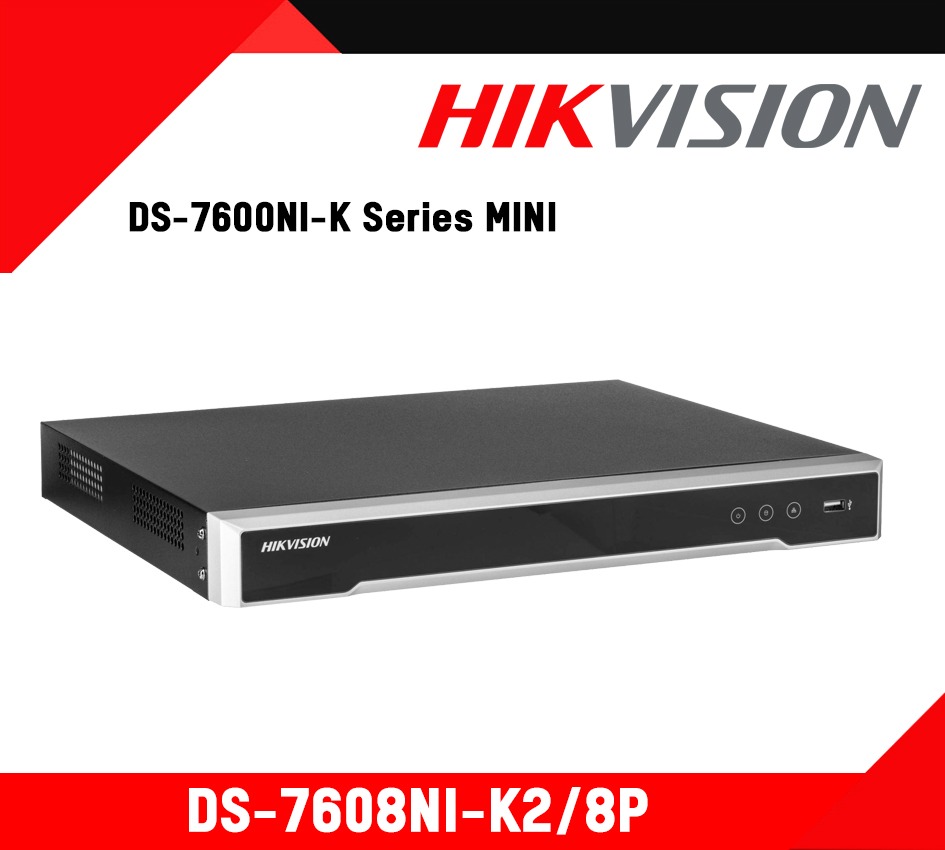

| Model | DS-7608NI-K2/8P |
|---|---|
| IP video input: | 4-ch |
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Incoming bandwidth: | 40Mbps |
| Outgoing bandwidth: | 80Mbps |
| HDMI Output: | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution: | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) |
| VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Live view / Playback: | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | 4-ch@1080P |
| SATA: | 1 SATA interface for 1 HDD |
| Capacity: | Up to 6TB capacity for each HDD |
| Network Interface: | 1 RJ-45 10 / 100 Mbps selfadaptive Ethernet interface |
| USB Interface: | 2, USB2.0 |
| Interface: | 4 independent 10 /100 Mbps PoE Ethernet interfaces |
| Power Supply: | 48 VDC |
| Consumption(without hard disk and POE): | ≤ 10 W |
| Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | 10 % ~ 90 % |
| Chassis: | 315 mm chassis |
| Dimensions: | 315 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″) |
| Weight(without HDD): | ≤ 1 kg (2.2 lb) |
