DS-7608NI-Q1/8P

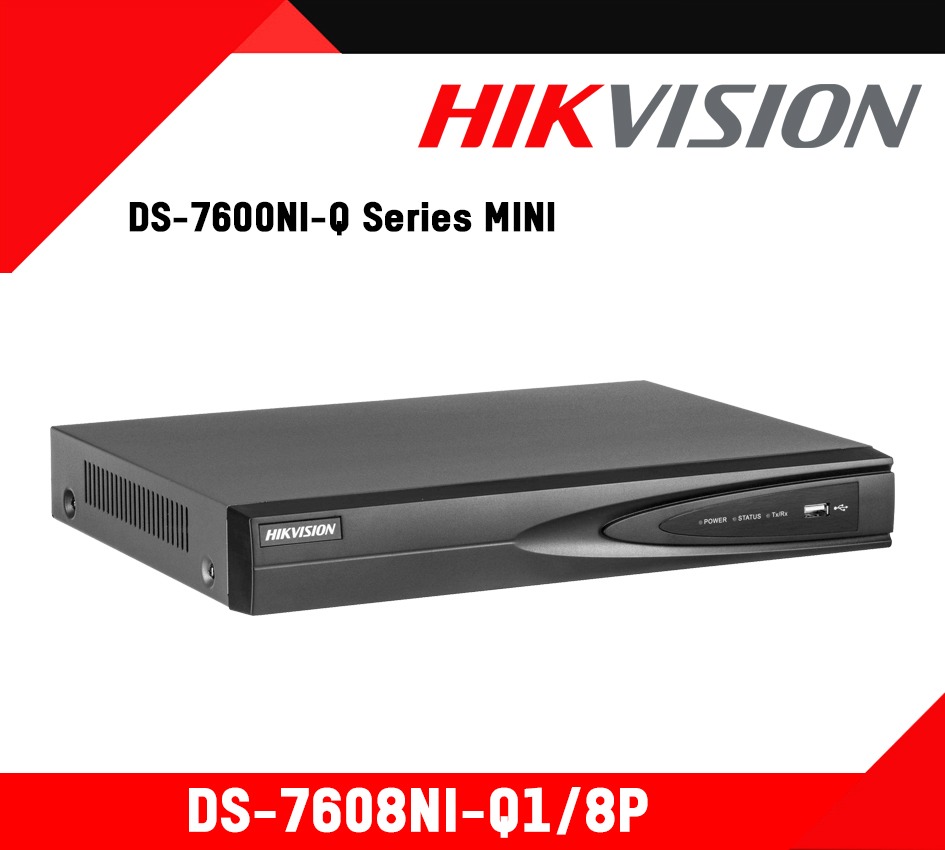

DS-7608NI-Q1/8P Hikvision DS-7600NI-Q - series MINI NVR Colombocctv.com Srilanka
DS-7608NI-Q1/8P
Availability: not in Stock

DS-7608NI-Q1/8P

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • NVRs provides centralized management of Hikvision as well as third-party network IP cameras.
  • The NVRs also support Hikvision smart IP cameras, for added functionality.
  • Supports 8 IP Cameras and up to 8 MP resolution
  • 8 Independent PoE Network Interfaces
  • HDMI Output Resolution: 1-ch, 4K (3840 × 2160)/30 Hz, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • Incoming Bandwidth: 80 Mbps Outgoing Bandwidth: 80 Mbps
Categories:

Description

 Data sheet: DS-7608NI-Q1/8P
 User Manual: DS-7608NI-Q1/8P
 Quick Start Guide: DS-7608NI-Q1/8P

Motion Detection 2.0

  • Human/Vehicle Analysis: 4-ch

Recording

  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726

Video And Audio

  • IP Video Input: 8-ch
  • HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; HDMI/VGA simultaneous output,;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,
  • VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output Mode: HDMI/VGA simultaneous output
  • Incoming Bandwidth: 80 Mbps
  • Outgoing Bandwidth: 80 Mbps
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

  • Decoding Format: H.265+,H.265,H.264+,H.264
  • Decoding Capability: 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
  • Synchronous Playback: 8-ch
  • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network

  • Remote Connection: 32
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE

  • Interface: 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power: ≤ 75 W

Auxiliary Interface

  • Alarm In/Out: N/A (4/1 is optional)
  • SATA: 1 SATA interface
  • Capacity: Up to 8 TB capacity for each disk
  • USB Interface: 2 × USB 2.0

General

  • Power Supply: 48 VDC, 1.88 A
  • Consumption: ≤ 10 W (without HDD and PoE off)
  • Working Temperature: -10 to +55º C (+14 to +131º F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
  • Weight: ≤ 1 kg (without HDD, 2.2 lb.)

Certification

  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
